MP-VW24

Dual 4K60Hz 4:4:4 HDMI inputs
Output up & down-scaling up to 4K60Hz
HDMI audio de-embed to digital and balanced analog stereo audio
Control via buttons, RS-232, and web-GUI
8 video-wall layouts included (1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2), support3x3 and 4x3 when cascading

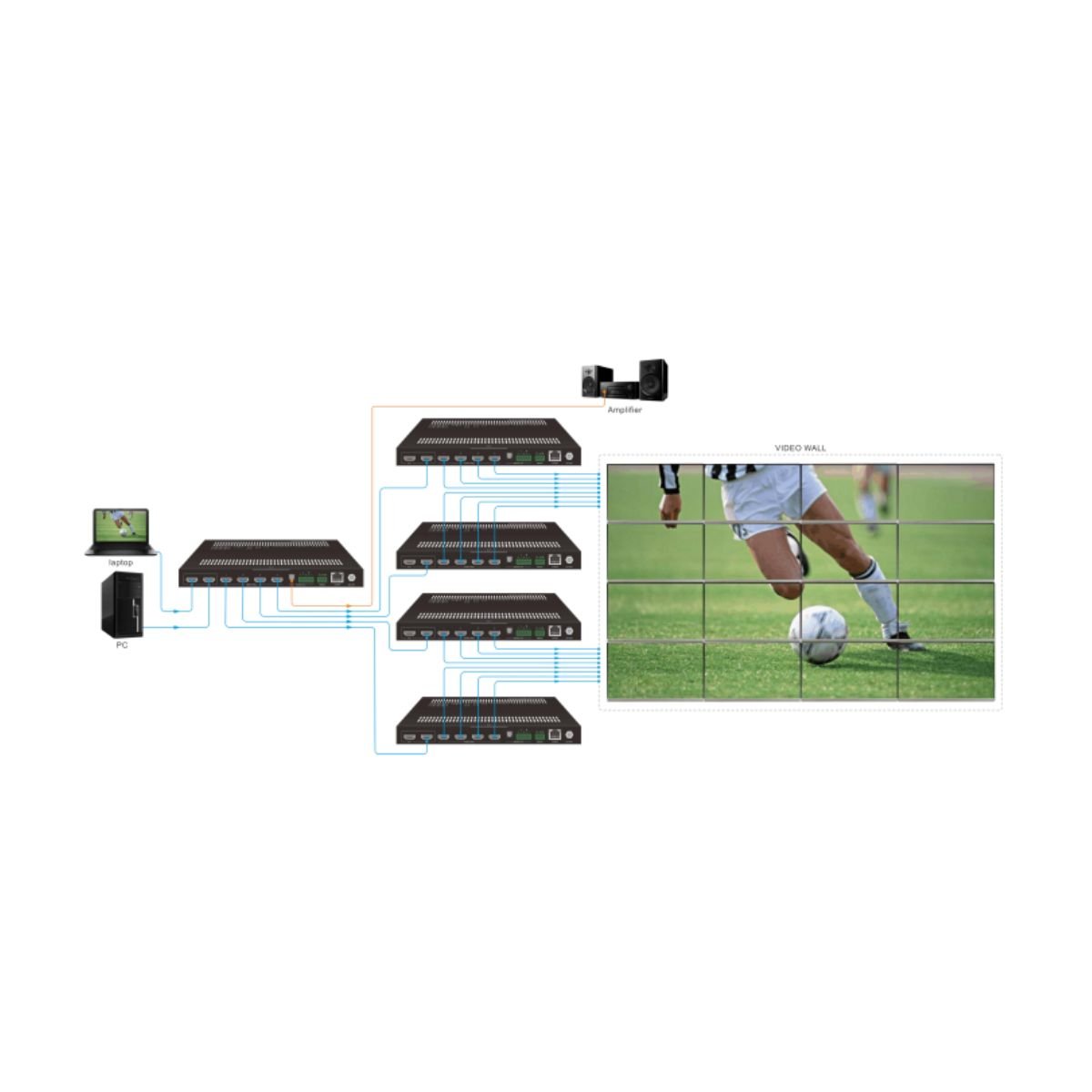

Cascadable for larger system
180° rotation per output
Pixel-perfect BEZEL correction
Seamless Switching

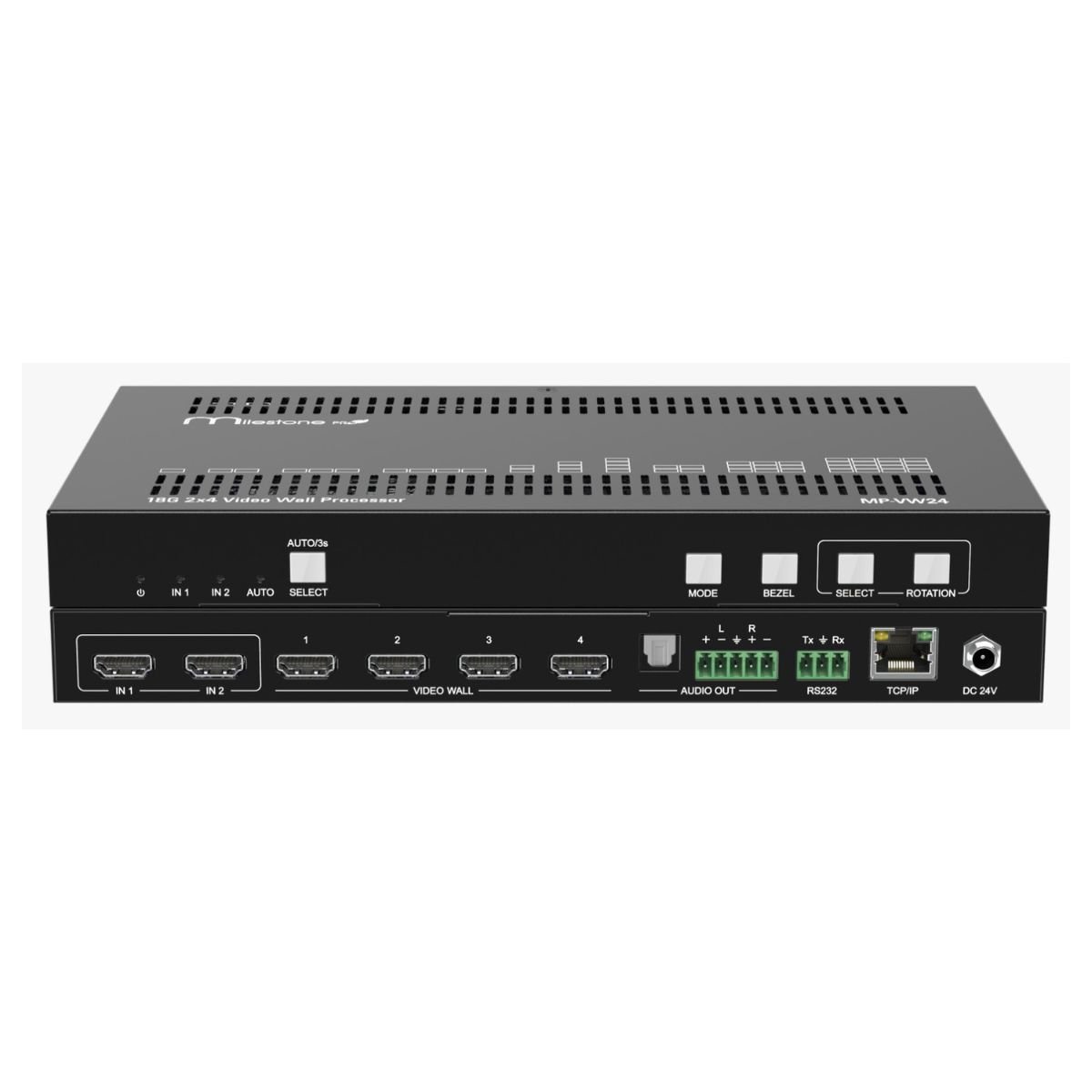

The MP-VW24 is a 2×4 video wall processor featuring two HDMI inputs, each supporting resolutions up to 4K, and four HDMI outputs that combine to form the video wall. It supports upscaling up to 4K and can be controlled via front-panel buttons, RS-232, or a web-based GUI.

Video Input	2x HDMI 2.0, 19-pin Type-A female HDMI
Resolution	up to 4K60Hz 4:4:4, HDR10+, Dolby Vision, HLG.
Output Connector	4x HDMI 2.0, 19-pin Type-A female HDMI
Resolution	up to 4K60Hz 4:4:4, HDR10+, Dolby Vision, HLG.
Output	1x 5-pin Phoenix for Analog L/R Audio
Frequency Response	20Hz - 20kHz, ±1dB
Max Output Level	2.0Vrms ± 1dB.
THD+N	< 0.05%, 20Hz - 20kHz bandwidth, 1 kHz sineat 0dBFSlevel (or max level)
SNR	> 80dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation	< -80 dB
L-R level deviation	> 70dB
Control port	1x 3-pin Phoenix for RS-232, 1x RJ-45 for Web-GUI
Operation Temperature	-5℃ ~ +55℃
Storage Temperature	25℃ ~ +70℃
