MPTP-TUH43R

18Gbps high bandwidth, HDMI V2.0
HDMI video resolution up to 4K60Hz 4:4:4, HDR10, Dolby Vision
Supports transmission up to 40m at 4K60Hz and 70m at 4K30Hz
Two-way IR and RS232 pass-through
Supports two-way 24V PoC
Supports audio pass-through

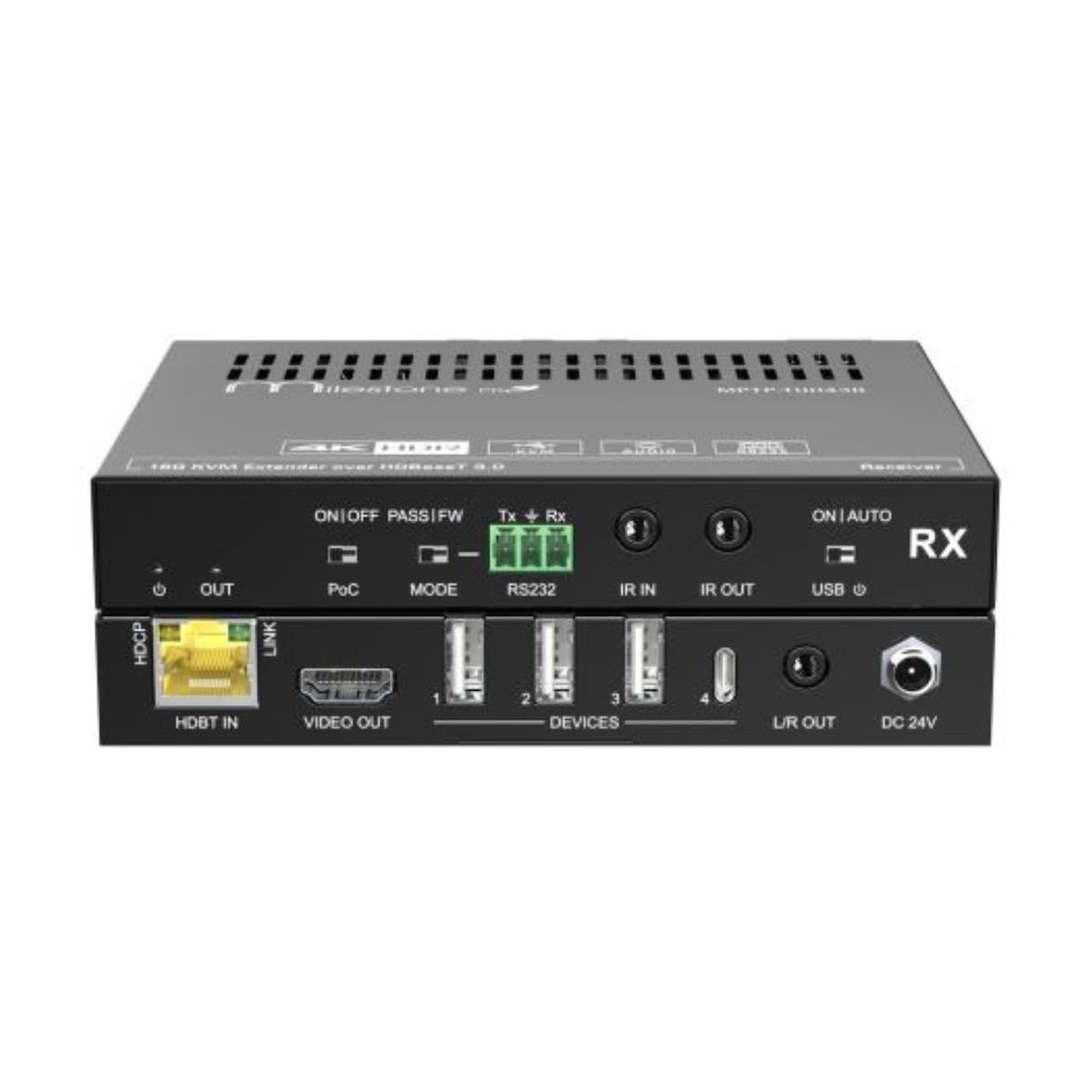

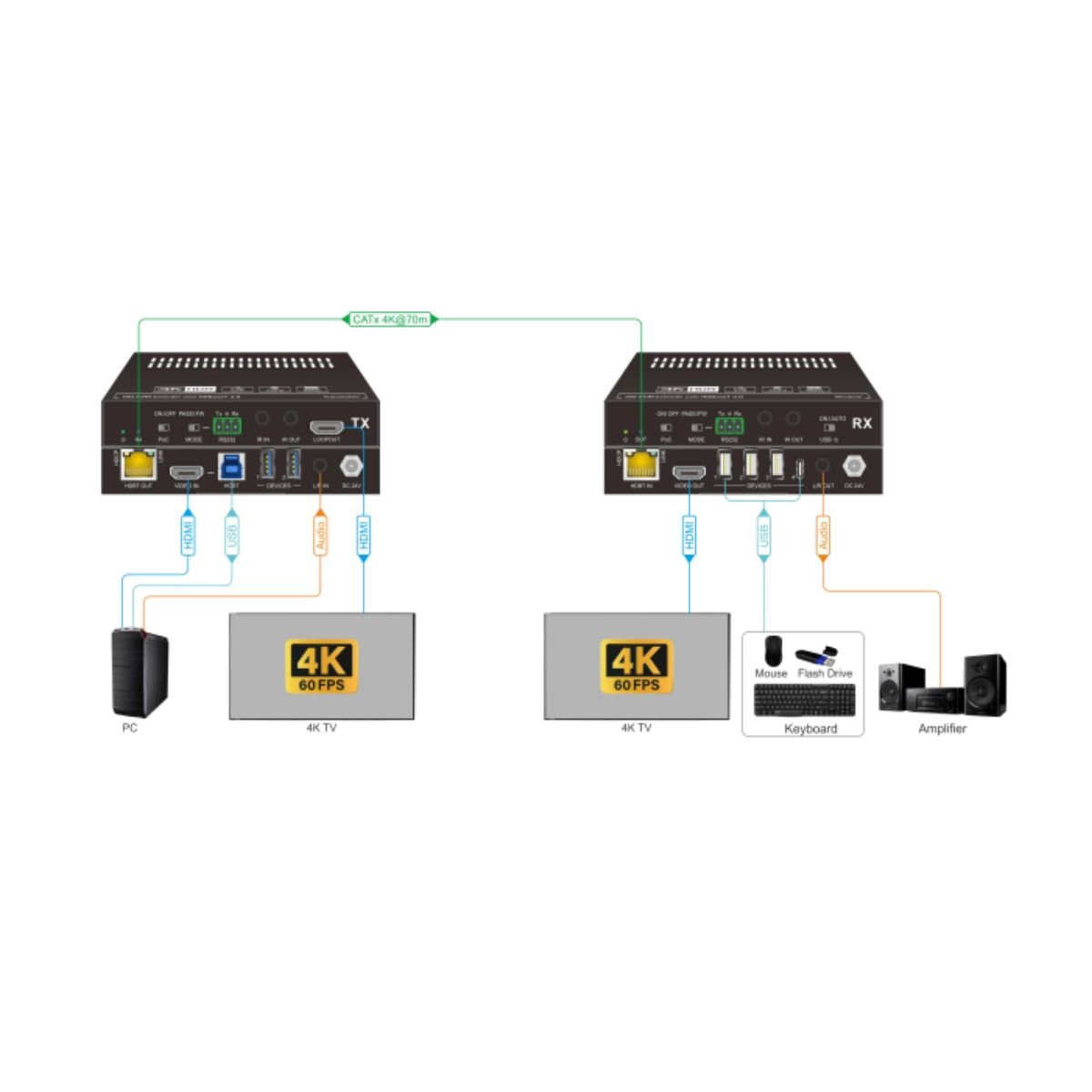

Thanks for choosing the 18G KVM Extender Receiver. It can transmit upto40mat 4K60Hz and 70m at 4K30Hz via CAT6A cable. It supports audio pass-through and two-way IR, USB extend, and RS232 pass-through. The 24V PoC feature allows the transmitter and the receiver to be powered from each other, and only one power adapter is needed in the system.

MPTP-TUH43R

Input	(1) HDBT IN
Input Connector	(1) RJ45
Input Resolution	Up to 4K60Hz 4:4:4
Output	(1) VIDEO OUT
Output Connector	(1) Type-A female HDMI
Output Resolution	Up to 4K60Hz 4:4:4
Output	(1) L/R OUT
Output Connector	(1) 3.5mm jack
Audio Format	3.5mm Audio: PCM 2CH
