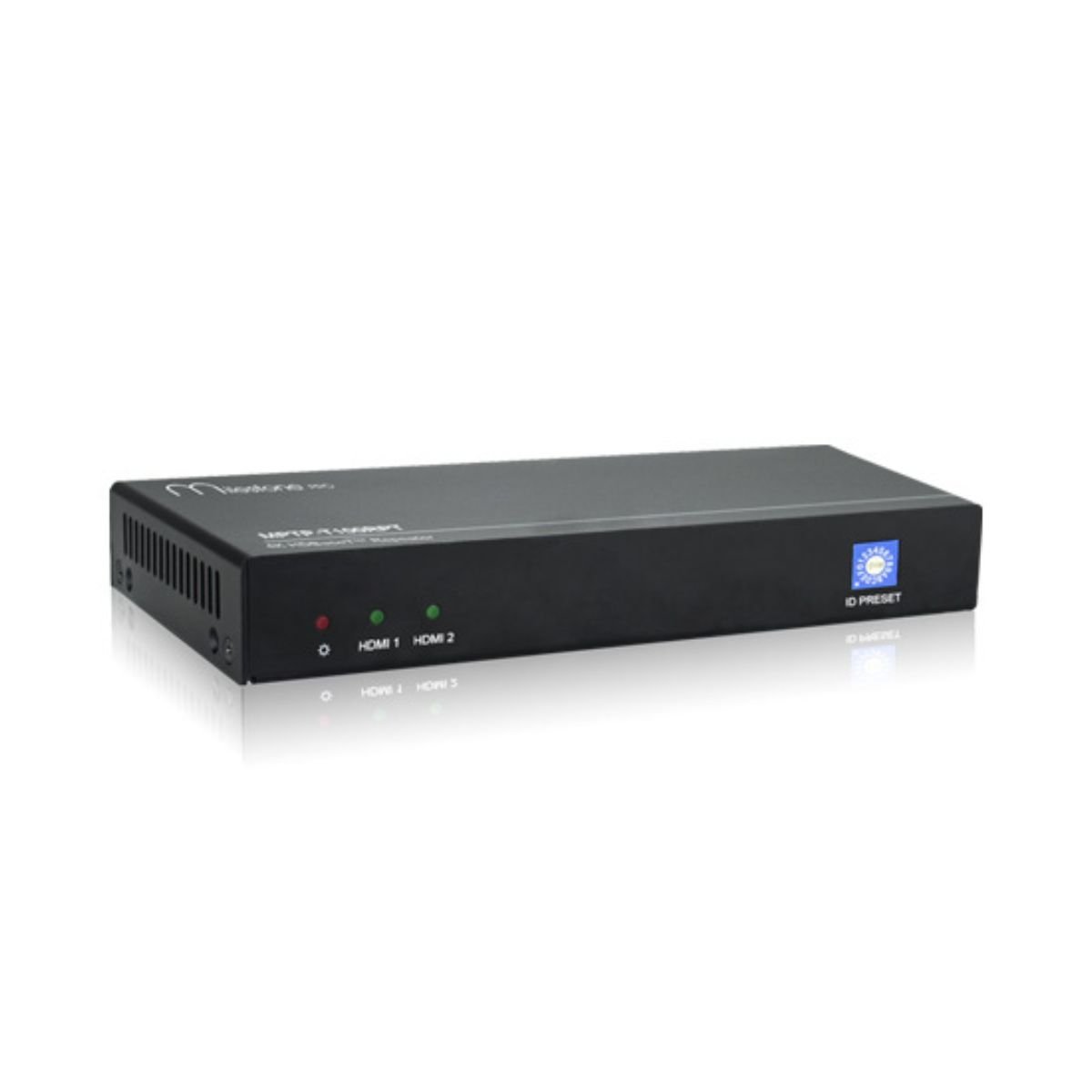

MPTP-T100RPT

Features HDBT input HDBT output, Audio output and two HDMI outputs.
With two RS232 ports, supports point to point, one to many and one to all RS232 control.
The input & output video resolution can up to 4Kx2K 60Hz 4:2:0.
Supports all know n HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS HD Master Audio.
HDBT ports with distance up to 328ft. (100m) at 1080p and 230ft. (70m) at 4Kx2K over CAT5e/6/7.
HDCP2.2 compliant.
Supports cascading, at least 6 units can be looped within the same operation system.
ID PRESET switcher is designed for assigning the Unit ID.
Supports input signal de-embedding.

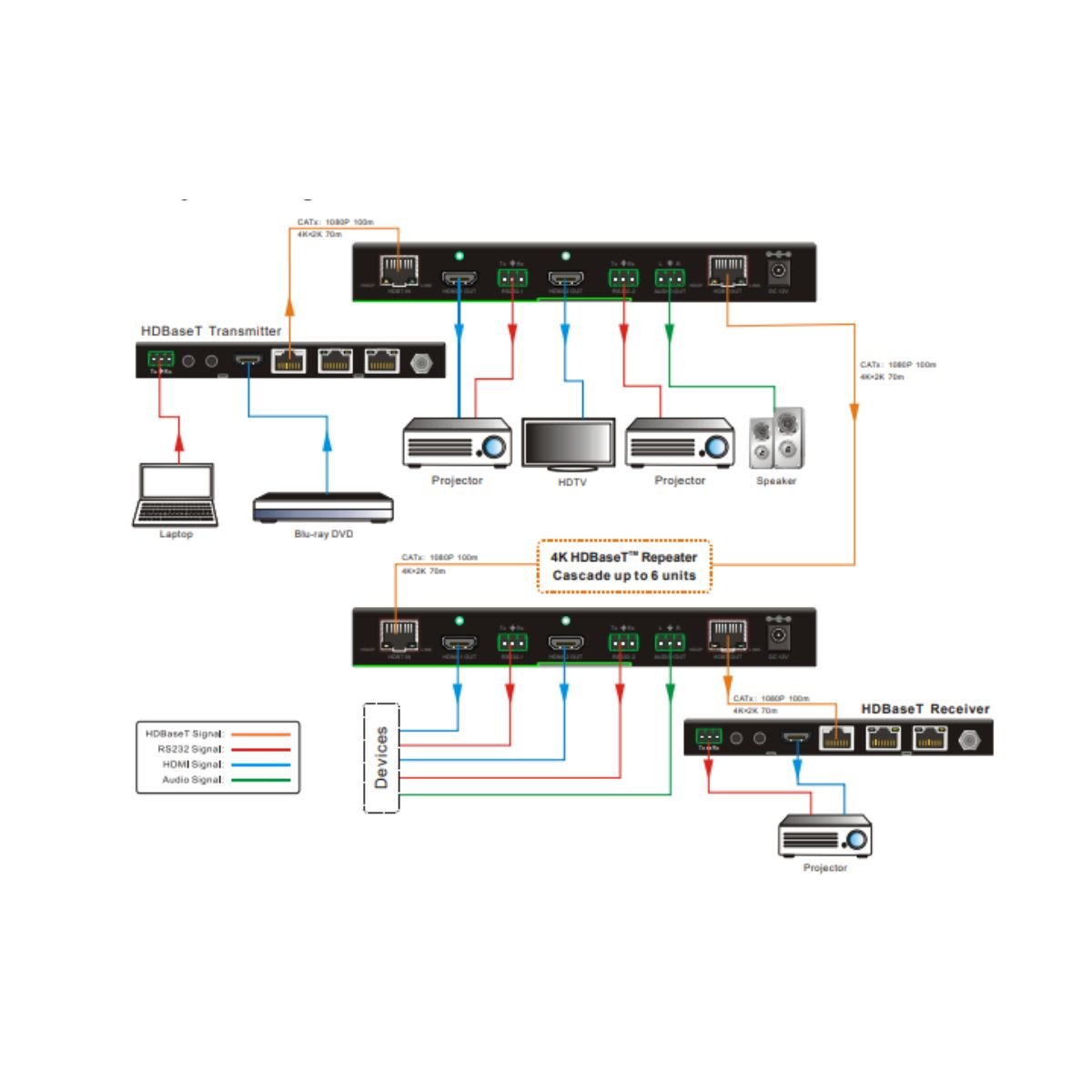

MPTP-T100RPT is designed to extend the signal transmission distance of the Matrix system, and Extender sets by repeating the HDBaseT signals up to 4K70m & 1080p100m over CAT5e/6/7 cable for each unit. The user can connect up to 6 repeaters for each output by daisy-chain connection. For instance, a 4K HDBaseT 8×8 Matrix Switcher, which has 8 HDBaseT outputs, can connect with up to 48 repeaters in the system.

MPTP-T100RPT

Input Port	HDBT IN
Input Connector	(1) RJ45 Receptacle
Input Video Signal	The max resolution is up to 4Kx2K/60Hz 4:2:0, compatible with HDCP2.2
Output Port	(2) HDMI OUT; (1) HDBT OUT; (1) AUDIO OUT
Output Connector	(2) HDMI Type A Receptacle; (1) RJ45 Receptacle; (1) 3 Pin phoenix connector
Output Video Signal	The max resolution is up to 4Kx2K/60Hz 4:2:0, compatible with HDCP1.4
Embedded Audio Signal	Support s PCM/Dobly/DTS
Output Analog Audio Signal	Supports PCM
Analog Audio Frequency Response	20 Hz to 20 kHz, ±3 dB
Transmission Mode	HDBaseT
Control Ports	(2) RS232
Connector	Two (2) 3 Pin phoenix connector
Baud Rate	9600
Power Supply	Input: 100VAC~240VAC, 50/60Hz Output: 12VDC, 2A
Maximum Power Consumption	14W
Work Temperature	-10 ~ +55℃
Humidity	10% ~ 90%
Dimension (WHD)	200mm x 25mm x 100mm
Net Weight	357g
