MP-BYOD

Supports HDMI, Mini DP and USB-C input signals to be converted to HDMI signals.
Auto-detects the input signal, the last connected signal source will be switched to the output automatically.
Starts to scan from HDMI to USB-C and switch the first detected source to output.
Supports Mini DP and USB-C input video resolution up to 4K60Hz 4:4:4.
Supports HDMI input and output video resolutions up to 4K60Hz 4:4:4 HDR and Dolby Vision.
HDCP 2.2 compliant.
Powered via USB-A from display end.
LED for power indicating.

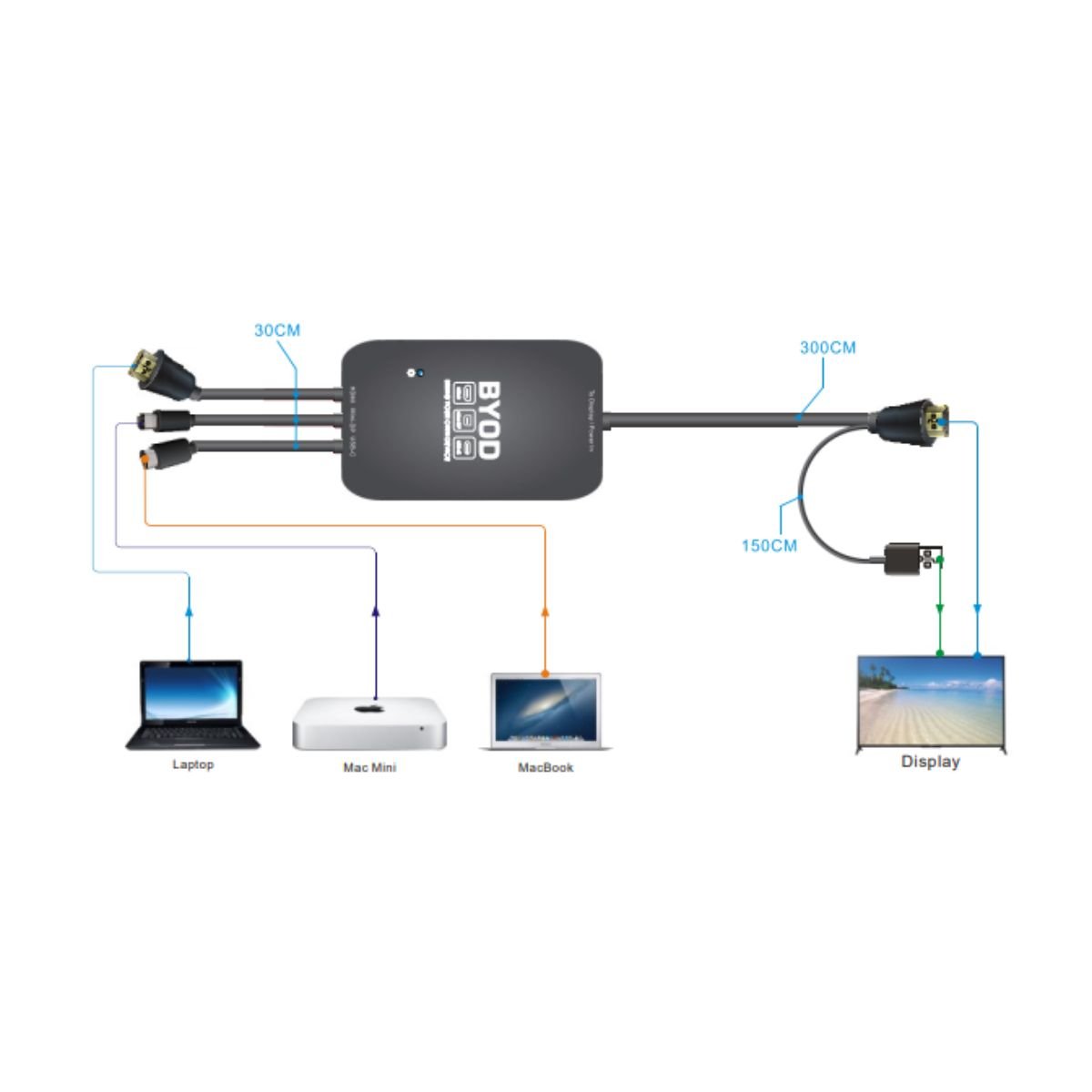

MP-BYOD is an HDMI 2.0 3×1 Multi-format Presentation Switcher converting AV signal from HDMI, Mini DP, and USB-C inputs to HDMI output. The MP-BYOD is a green low energy consumption product which has various applications in different places, such as classrooms, small meeting rooms, lecture halls, etc.

Connector Type	(1) Type-A HDMI, (1) Mini DP, (1) Type-C USB
HDMI Video Resolution	Up to 4K 60Hz 4:4:4, HDR
Mini DP Video Resolution	Up to 4K60Hz 4:4:4
USB-C Video Resolution	Up to 4K60Hz 4:4:4
HDMI Audio	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS HD® Master Audio™ pass through.
HDMI Version	2.0
DP Version	1.2
HDCP Version	HDCP 2.2 compliant
