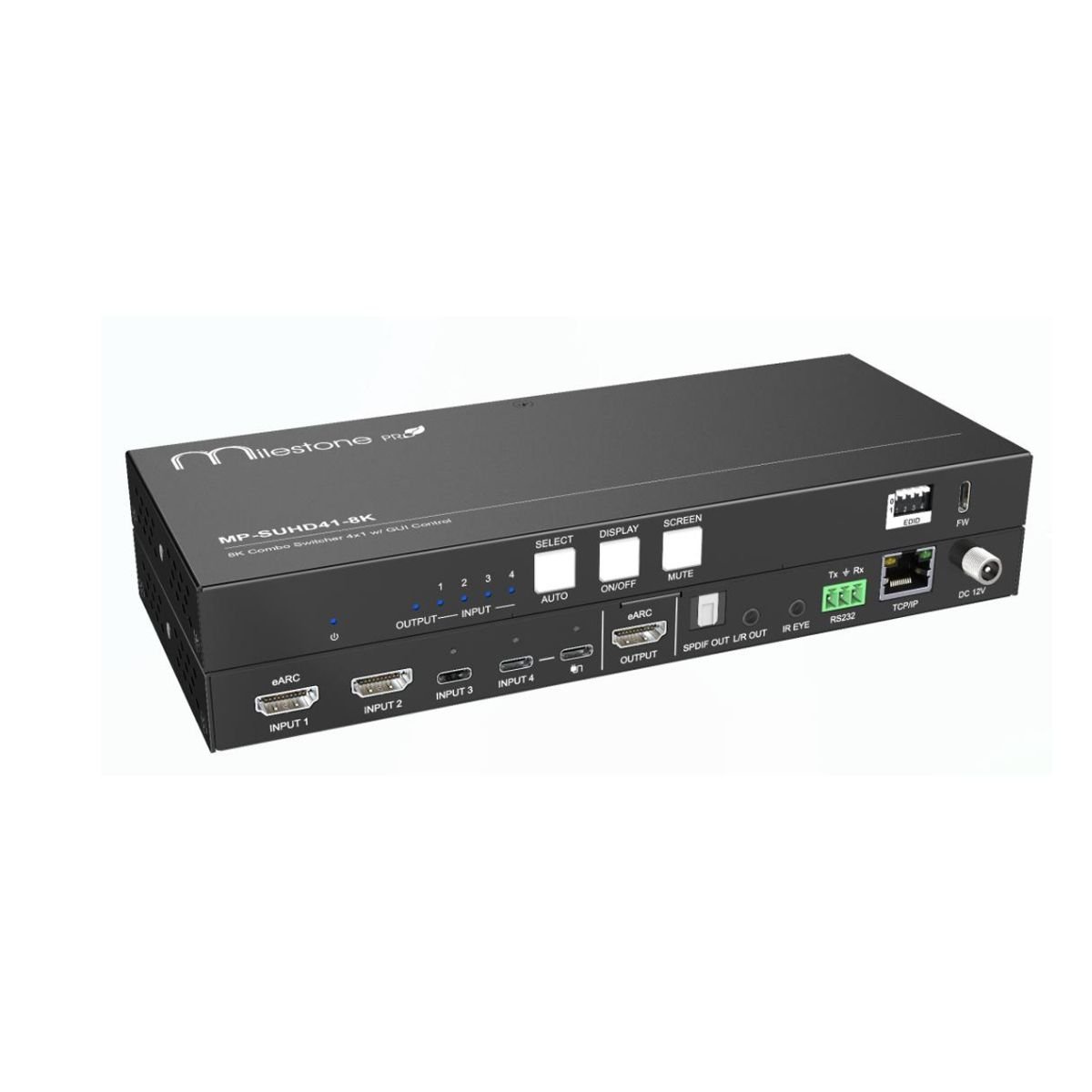

MP-SUHD41-8K

4ways 8Kswitcher with 2 HDMI & 2 USB-C
Supports video resolution up to 8K60Hz 4:4:4, Dolby Vision, HDR
Supports enhanced audio return channel (eARC) and audio de-embedded
Advanced EDID and HDCP management
Controllable via button, GUI, RS232 and IR
Supports USB-C 100W PD charging
Firmware upgrade by USB-C

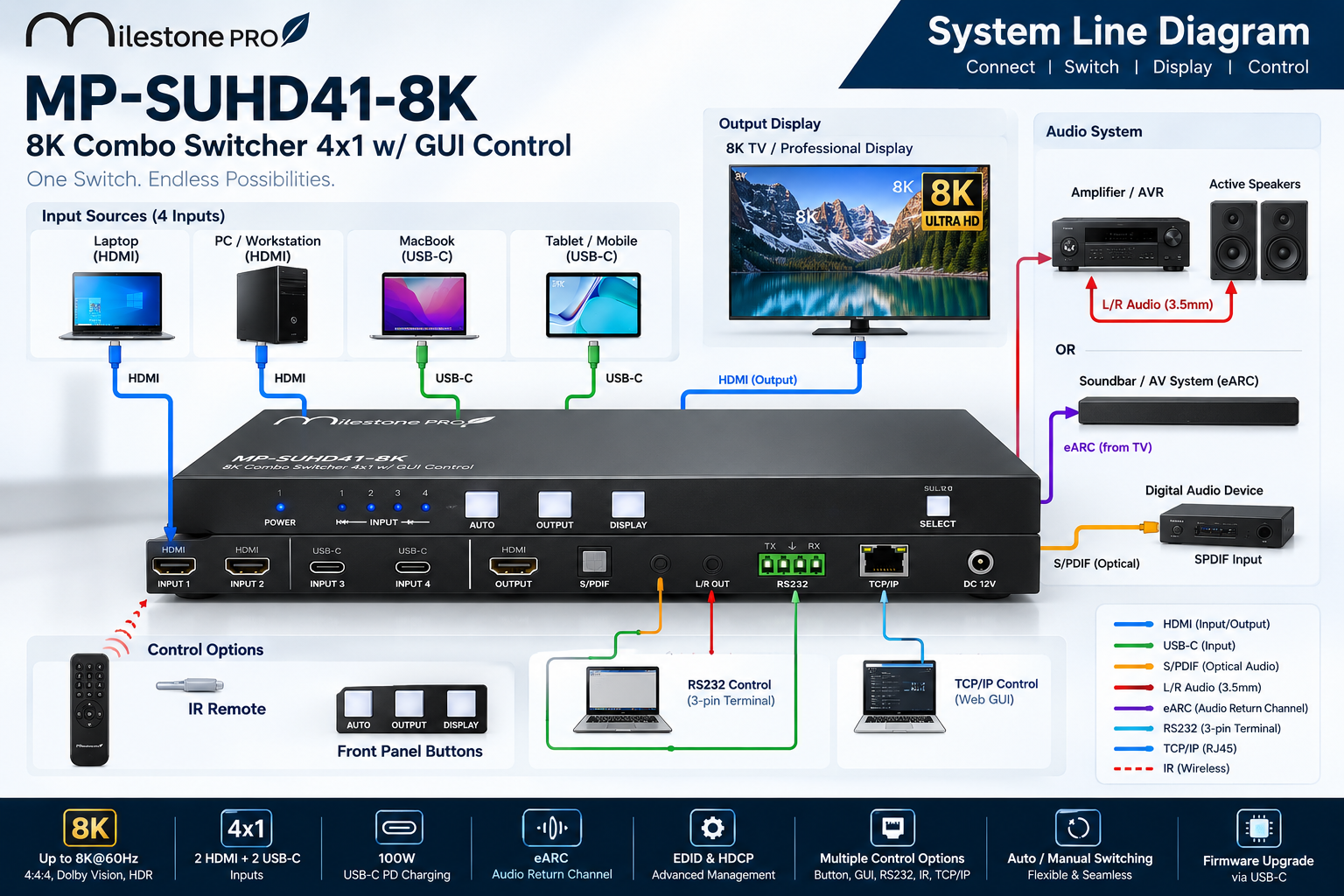

The 4 Inputs 8K 40G switcher is designed to enable a true 8K display. It supports a max 8K60Hz 4:4:4 resolution (for HDMI input with DSC). The switcher features 2 HDMI inputs, 2 USB-C inputs, and one HDMI output. USB-C supports an extra 100W PD charging.

No diagram found.

No sidebar links found

Input	(2)HDMI,(2)USB-C
HDMIStandard	2.1
HDCPVersion	2.3
Output	(1)HDMI
HDMIOutputResolution	Upto8K60Hz4:4:4,DolbyVision,HDR+(HDMI InputwithDSC)	Upto8K30Hz4:2:2,DolbyVision,HDR+(USB-C Input)
HDMIStandard	2.1
HDCPVersion	2.3

MP-SUHD41-8K
