MP-MUH44A2-H2

4x4 HDMI 2.0 Matrix Switcher
Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant
Audio Matrix, audio out can de-embedded from arbitrary input or output
Individual volume adjustment on each L+R output
Supports 4K to 1080p down-scaling up to 2 outputs
HDMI Output support up to 5V500mA for AoC cable

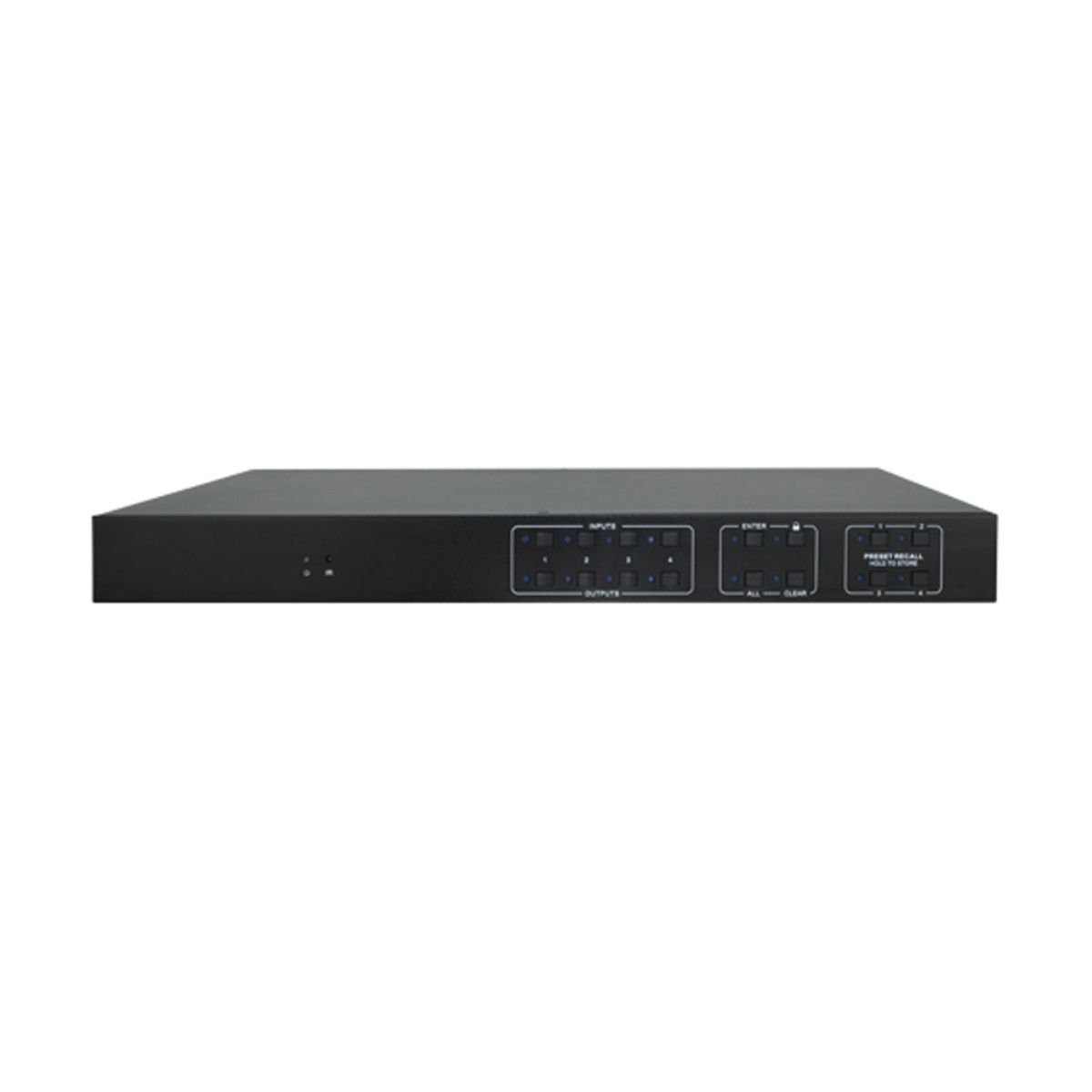

Controllable by front panel, IR, RS232 and TCP/IP

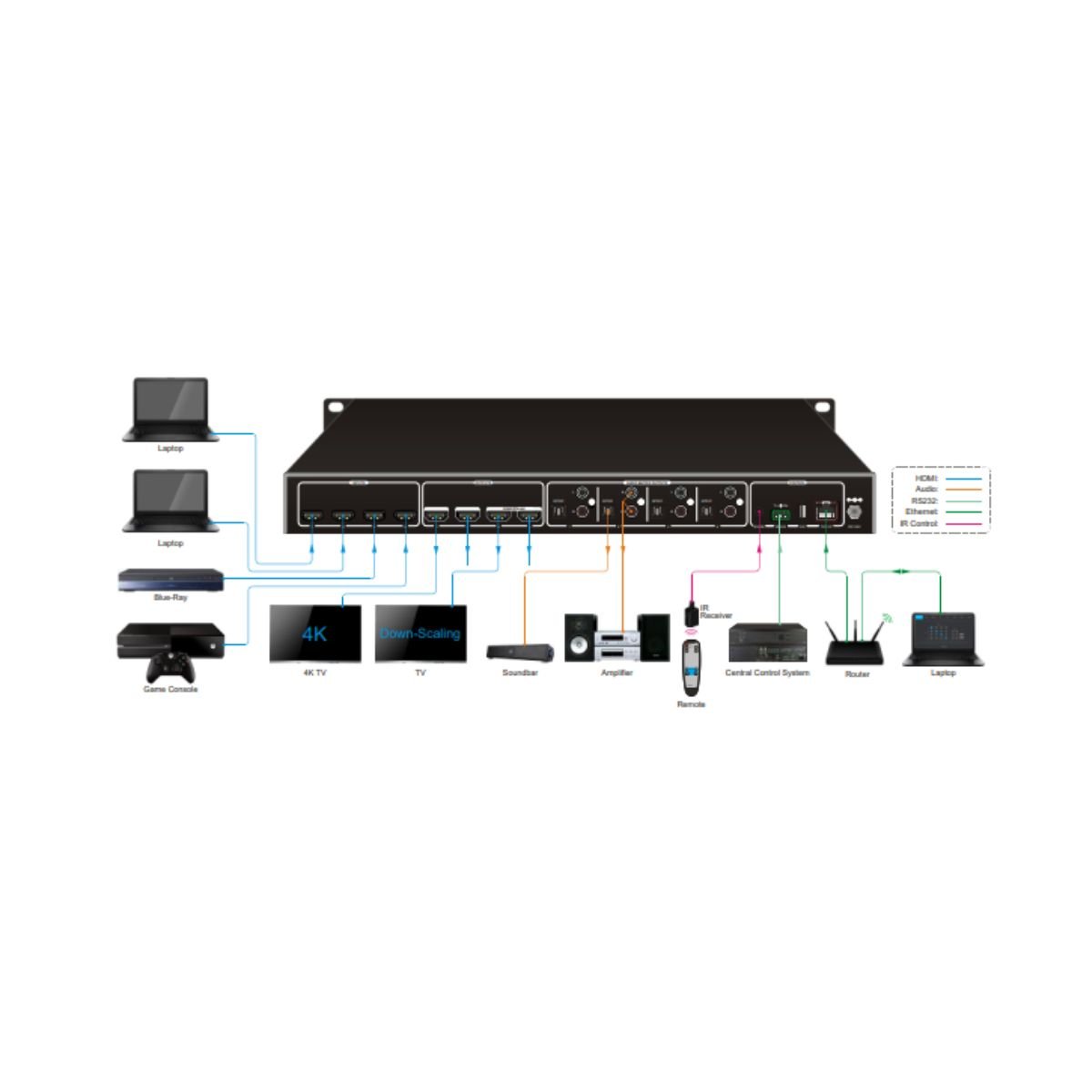

MP-MUH44A2-H2 is a professional 4×4 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 4 HDMI inputs, 4 HDMI outputs, and the last two outputs with a down-scaling function, which is designed for switching two HDMI 2.0 and HDCP2.3 compliant signals. It also features 4 SPDIF and 4 analog audio outputs for an audio matrix. The matrix switcher features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources. It is not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.

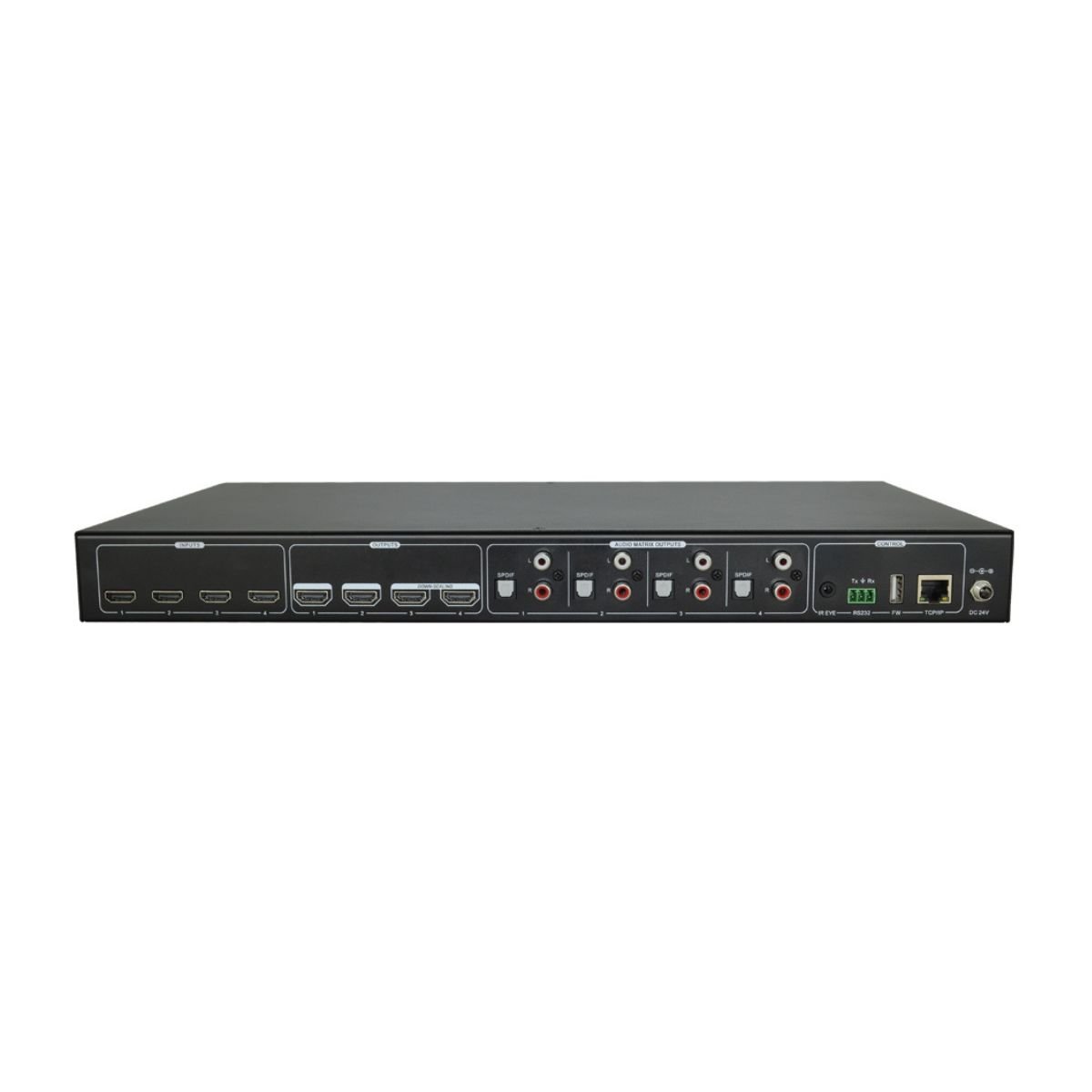

Video Input	4 x HDMI
Video Input Connector	4 x Type-A female HDMI
Video input Video Resolution	Up to 4K60Hz 4:4:4
Video Output	4 x HDMI
Video Output Connector	4 x Type-A female HDMI
Video output Video Resolution	Up to 4K60Hz 4:4:4
HDMI Output	Supports up to 5V500mA for AoC cable
HDMI Version	Up to 2.0
HDCP Version	Up to 2.3
HDMI Audio Signal	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Output	4 x Digital SPDIF audio
Output Connector	4 x Toslink connector
Digital SPDIF Audio Format	Supports PCM, Dolby Digital, DTS, DTS-HD
Frequency Response	20 Hz to 20 kHz, ±1dB
Max Output level	±0.05dBFS
THD+N	< 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
