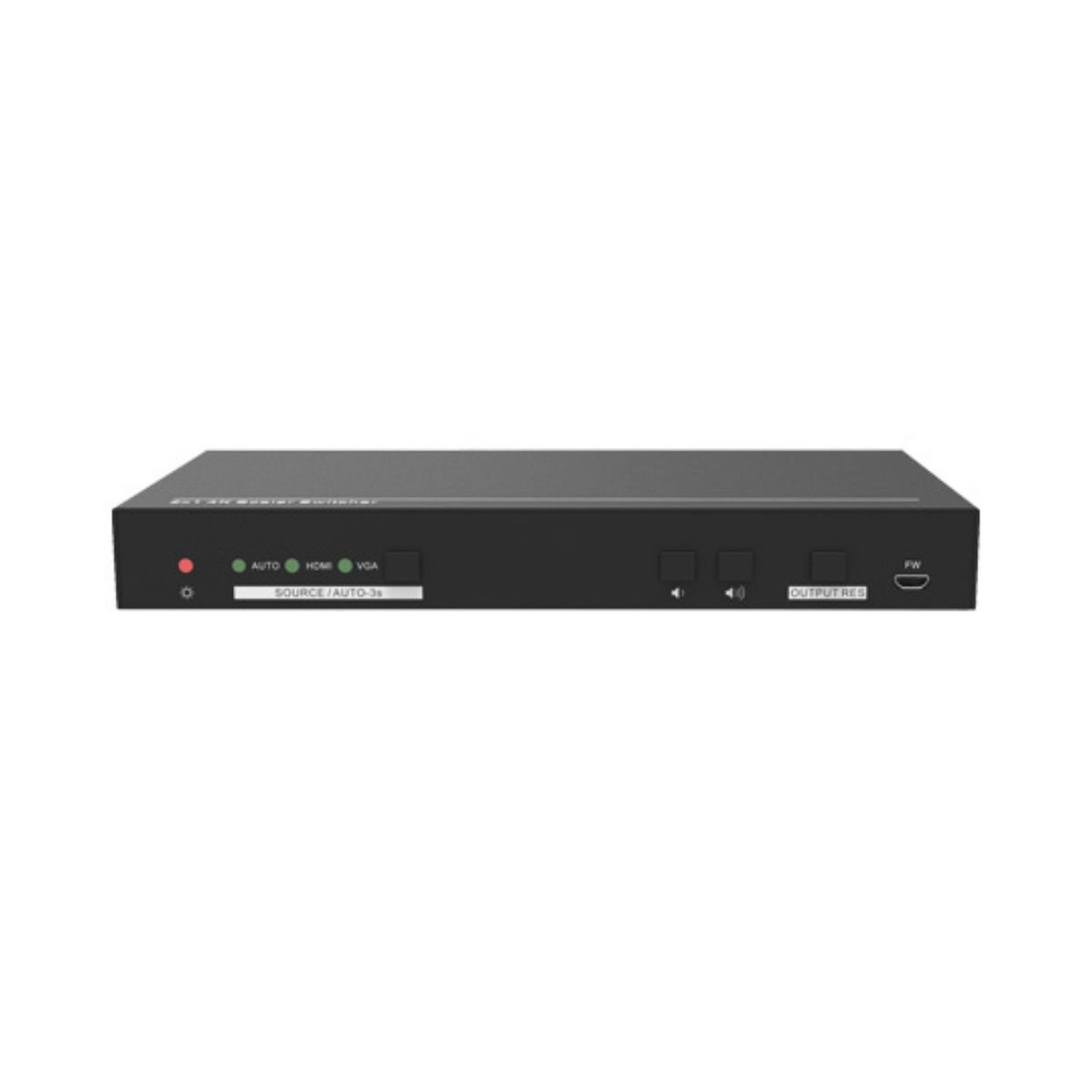

MP-SC-6E

Contr ol via Front panel buttons , RS232 commands and IR Remote
Switch select 6 input s ource to HDMI output
Scale scale VGA to HDMI output, Output resolutions selectable to assure preferred output, and supports various output resolutions, such as 1920 x 1200 1920 x 1080 1360 x 768 1280 x 800 1024 x 768 1280 x 720
Support HDMI 1.4 , 4Kx2K&1080P 3D compliance with HDCP1.4
Transmit 4Kx2K signal up to 15m.
Support EDID management
Two input switching modes: auto switching or manual switching
Intuitive indicator for power connect states & source selection & output resolution selection
Support audio video output man a gement via OUTPUT BLACK button.
Support online software upgrading

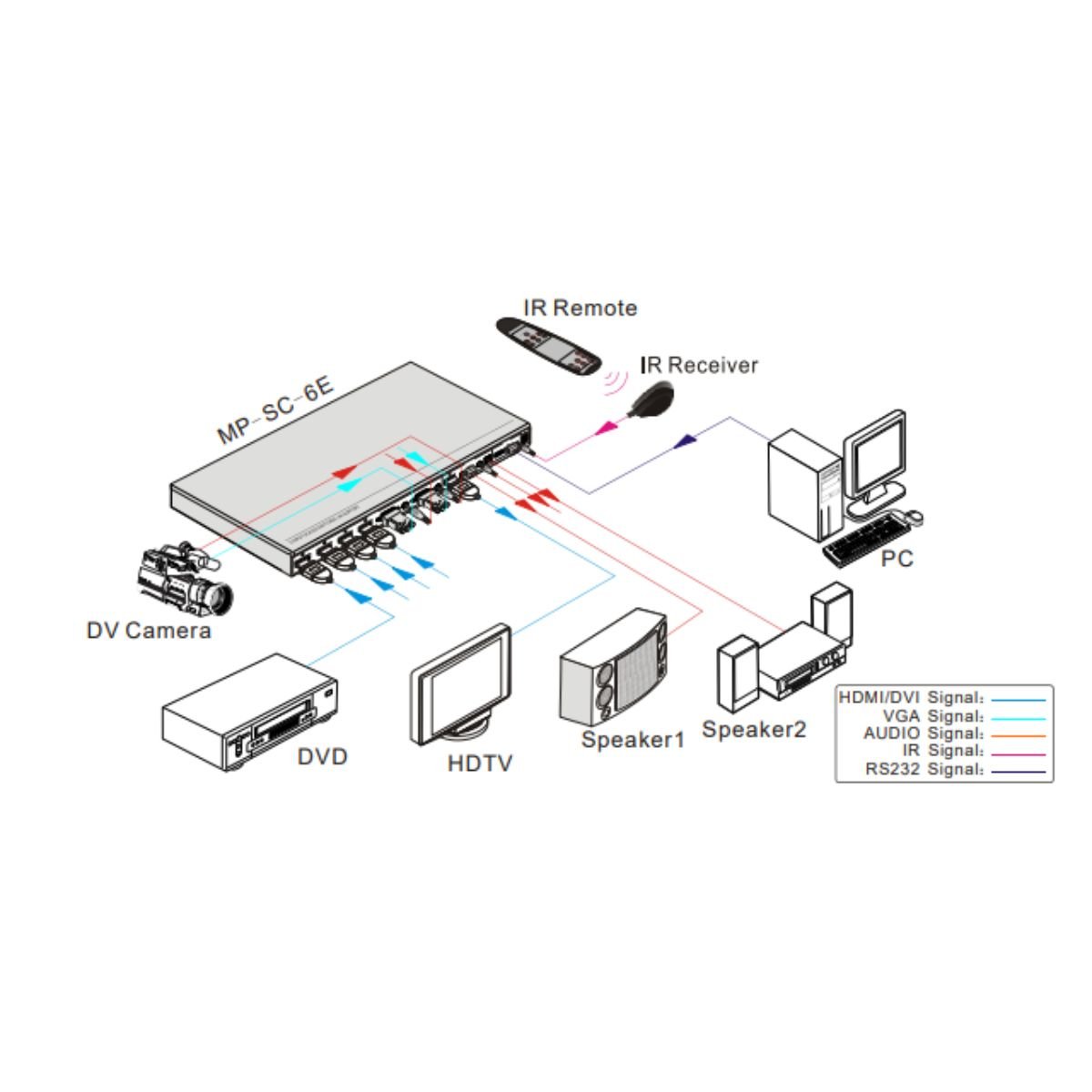

MP-SC-6E is a compact 6×1 mini unit with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA ), 1 HDMI output, and 3 audio outputs (1 dual mono analog audio, 1 3.5mm stereo audio, 1 optical audio). It switches the VGA or HDMI/DVI input signal to the HDMI output. Besides, the unit up-scales VGA to HDMI output and supports resolution adjustment (6 types in total). It bypasses HDMI and provides comprehensive resolution capacities up to 4K& 1080p 3D. The unit also supports RS232 & IR control and EDID management.

No sidebar links found

Input	4 x HDMI, 2 x VGA
Input Connector	4 x female HDMI (Type A) 2 x female VGA (15pin)
Video Signal	HDMI/DVI,VGA
Resolution	HDMI: up to 4Kx2K; VGA: output resolution selectable
Standard	Compliant with VGA&DVI HDMI1. 4, HDCP 1.4
Input	2 x stereo audio for VGA
Input Connector	1 x 3.5mm jack
