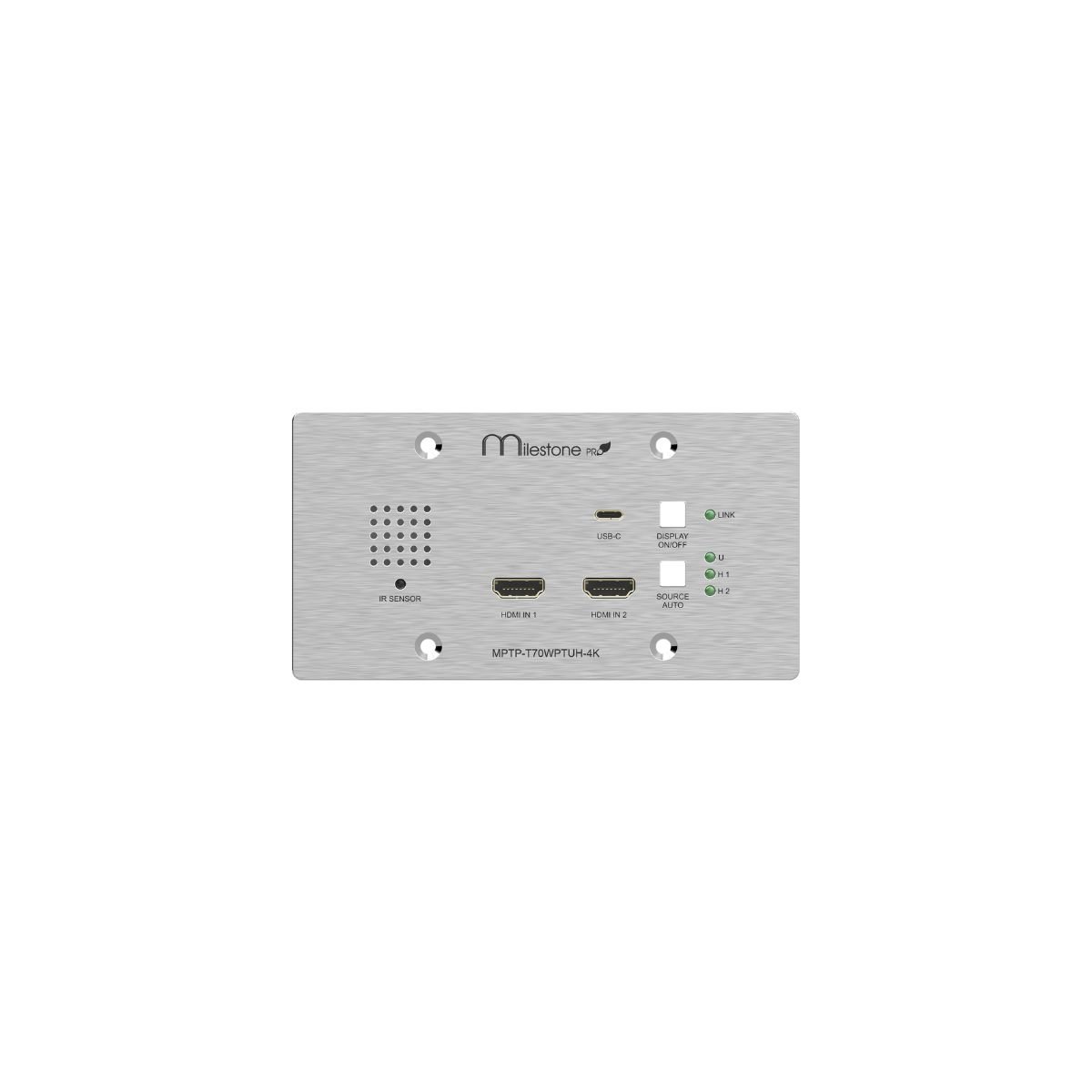

MPTP-T70WPTUH-4K

Supports HDMI signal up to 4K60Hz 4:2:0, Slimport signal up to4K30Hz4:4:4.
Supports HDMI 1.4 standard and HDCP 2.2 compliant. Ensures displayof content-protected media and interoperability with other HDCPcompliant devices.
Active input automatic detective
Extending HDMI signal 4K60Hz up to 131ft/40m and 1080P60Hzupto229ft/70m.
Supports RS232 pass-through with HDBaseT connection and local control.
Supports IR pass-through to extend IR signal to control display device.
The DISPLAY ON/OFF button can be programmed by IR learningfeatureorRS232 command.
The HDBT port supports 24V-48V PoC input and compatible with48VPoH, theswitcher can be powered from the compatible HDBaseT receiver bytheCATxcable, and it also supports 24V PoC output
Firmware upgrade by Micro-USB port.

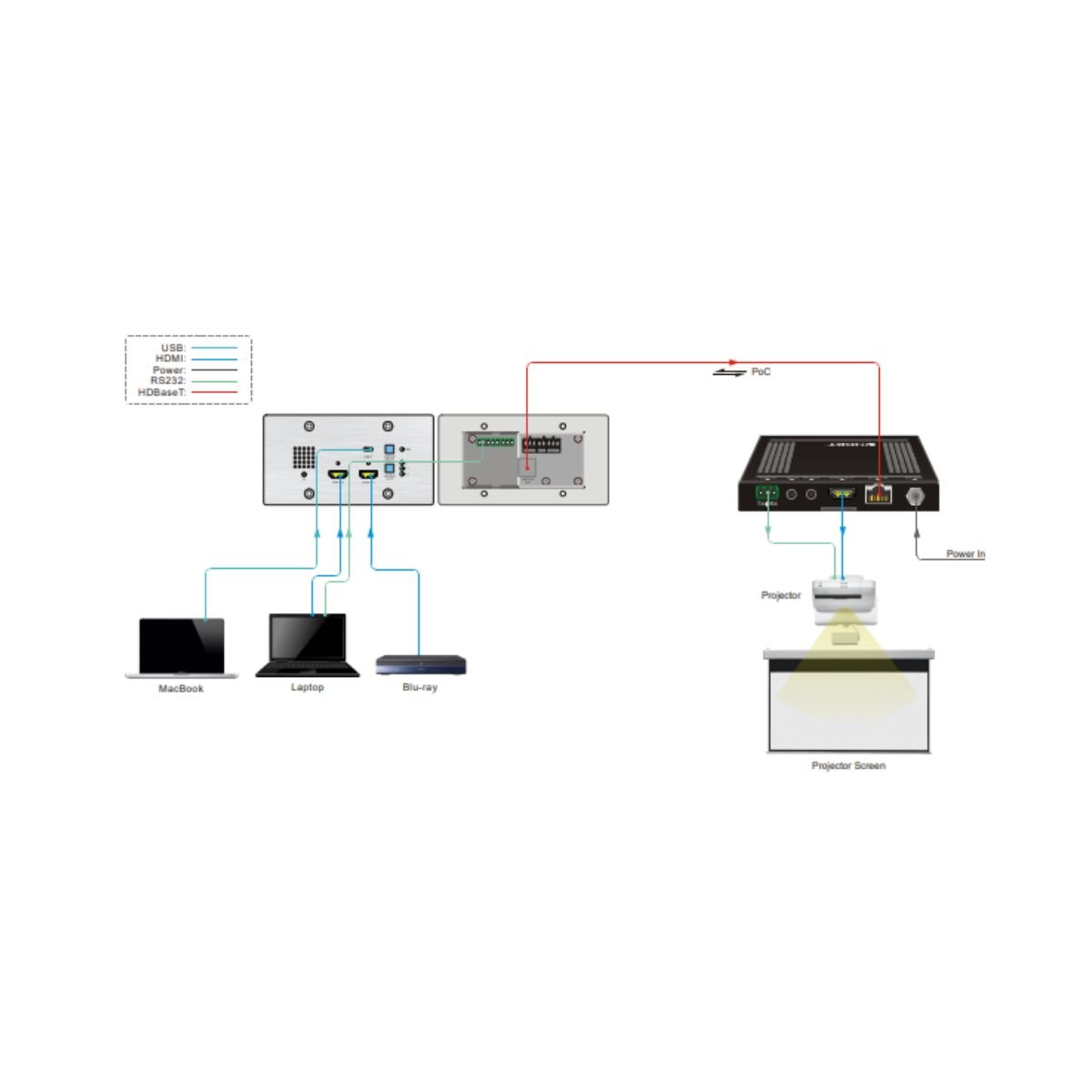

Thanks for choosing the MPTP-T70WPTUH-4K 3×1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or SL import input signal tofar-enddisplaydevice, and the transmission distance is up to 131ft/40m at 4K and 229ft/70mat 1080Pvideo by using a single CATx cable.

Input Connector	(2) Female type A HDMI, (1) Type-CUSB,
HDMI Input Resolution	Up to 4K/UHD60Hz 4:2:0
Slimport Input Resolution	Up to 4K/UHD30Hz 4:4:4
Output	(1) HDBT OUT
Output Connector	(1) RJ45
HDBT Output Resolution	Up to 4K/UHD60Hz 4:2:0
Control Ports	(1) IR, (1) FIRMWARE, (1) RS232, (1) IRIN
Control Connector	(1) Built-in IR sensor, (1) Micro-USB, (2) 3-pin terminal block
Bandwidth	10.2Gbps
Transmission Mode	HDBaseT
HDMI Version	1.4
HDCP Version	2.2
Transmission Distance	4K60Hz≤40M, 1080P60Hz≤70M
External Power Supply	Input:100V~240V AC; Output: 24VDC1.25A
Power Consumption	5W max. (408TU only – add extra for HDBaseTreceiver)
Operation Temperature	-10 ~ +40℃
Storage Temperature	-15 ~ +55℃
Relative Humidity	10% ~ 90%
Dimension (WHD)	151mm x 80mm x 39mm
