MP-200UPI

PD 3.1 w/ 140W injection
DP alt mode w/ 4K60Hz 4:4:4 video
Up to 10Gb USB3.2 Gen2 data rate
Switchable power for USB-C OUT
Firmware can be upgraded via USB-C
USB-C input w/ locking hole

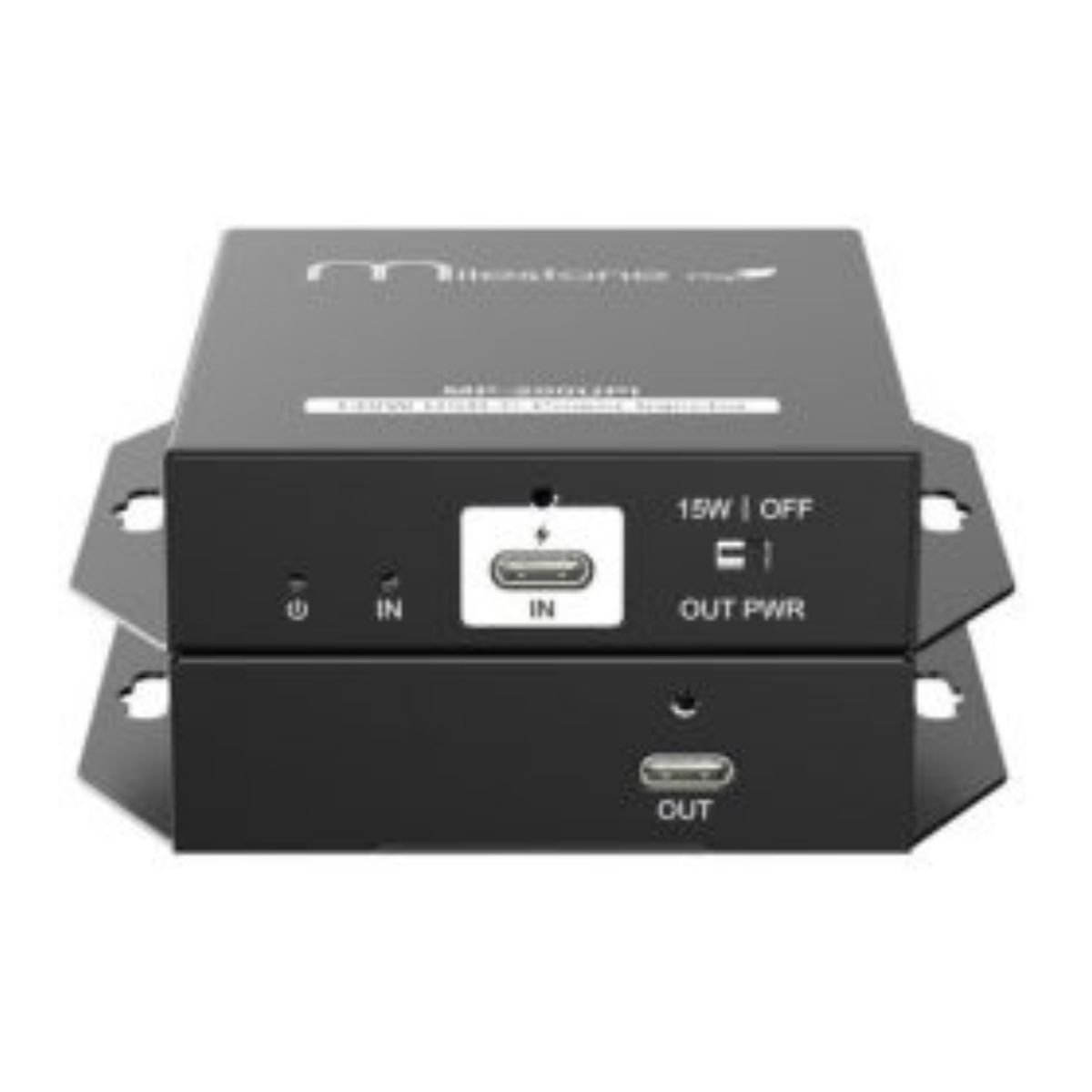

Milestone Pro MP-200UPI – 140W USB-C Power Injector The MP-200UPI is a high-power USB-C injector designed to deliver up to 140W of stable power for professional AV and conferencing setups. Equipped with a USB-C input, a USB-C output, and a selectable 15W auxiliary power switch, it ensures smooth, reliable power delivery over long cable runs. Ideal for powering laptops, touch panels, extenders, and other USB-C devices in modern installations.

Input	1x USB-C
output	1× USB-C
Video	Input: Up to 4K60Hz 4:4:4 Output: Up to 4K60Hz 4:4:
USB	Data Rate: 10Gbps Device Power: 0 / 15W
PD Standard	PD 3.1
Power Consumption	3W (Exclude USB device load
Dimension	70(W) x 20(H) x 90(D) mm
Net Weight	165g
Operation Temperature	-5 ~ +55 °C
Storage Temperature	-25 ~ +70 °C
