MP-8PC

Switch control, voltage, current, and power consumption monitoring
2x TCP/IP network ports to provide continuous network services
Overload protection, wiring error protection, and remote login verification
Supports multiple network protocols and IoT protocols
Controllable via buttons, RS-232, and Web-GUI

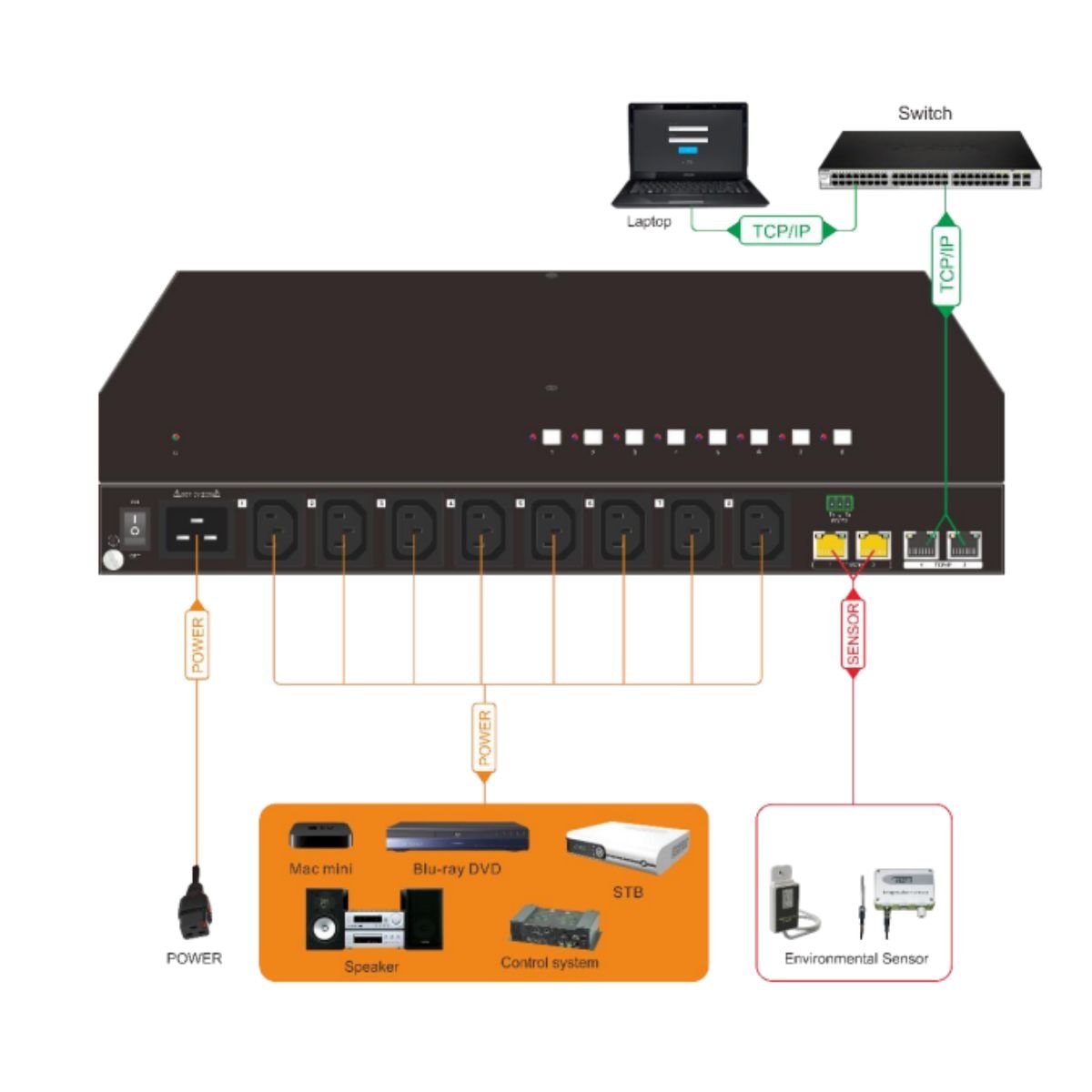

Supports connecting sensors to monitor the external environment

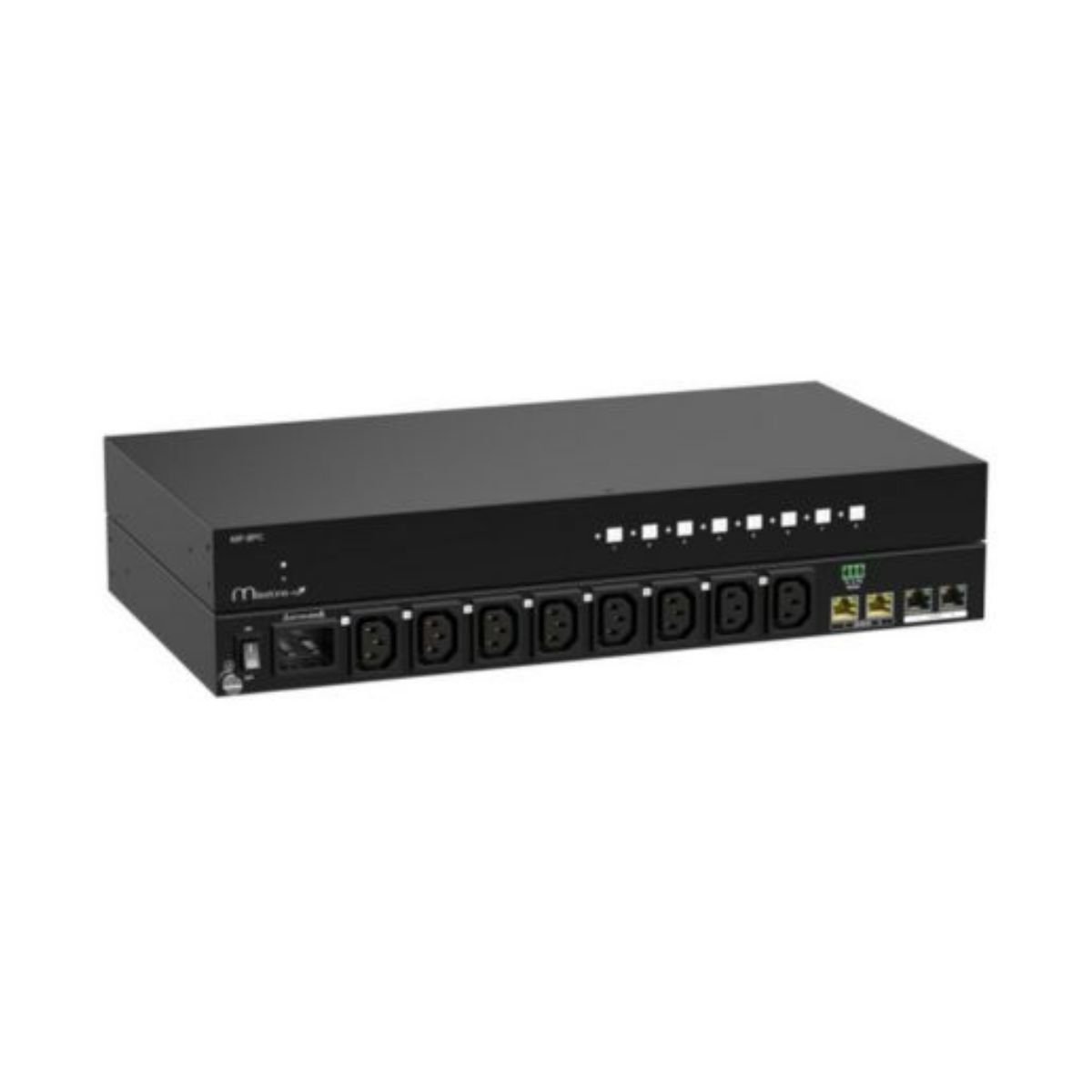

Thank you for choosing the product MP-8PC. The MP-8PC is designed for power control and monitoring data. It supports up to AC 110V~250V 16A power input and up to 10A power output per port. Here are various control methods to control the device. The PDU also supports monitoring data via TCP/IP, which provides multiple network protocols and IoT protocols. In addition, there are several protection mechanisms to protect the safety of the device and the user

Voltage	AC 110-250V
Frequency	50/ 60Hz
Current	Max. 16A
Connector	1x IEC C20
Voltage	AC 110-250V
Frequency	50/ 60Hz
Current	Max. 10A per port
Connector	8x IEC C13
Mode	Buttons, TCP/IP, RS-232
Connector	8x white buttons, 2x RJ45, 1x 3-pin phoenixterminal
