MP-NL1208D

Powerful 32-bit Floating Point DSP Processing
Drag-and-Drop DSP Programming Software
Real-Time Signal Flow Visualization (WYSIWYG)
Acoustic Echo Cancellation (AEC)
Intelligent Noise Suppression (NS)
Automatic Gain Control (AGC)
Automatic Microphone Mixer (Gain Sharing & Threshold Mixing)
Automatic Feedback Suppression (Adaptive Notch Filters)
31-Band Graphic EQ & Parametric Equalizer
High-Pass & Low-Pass Filters (Bessel, Butterworth & Linkwitz-Riley)

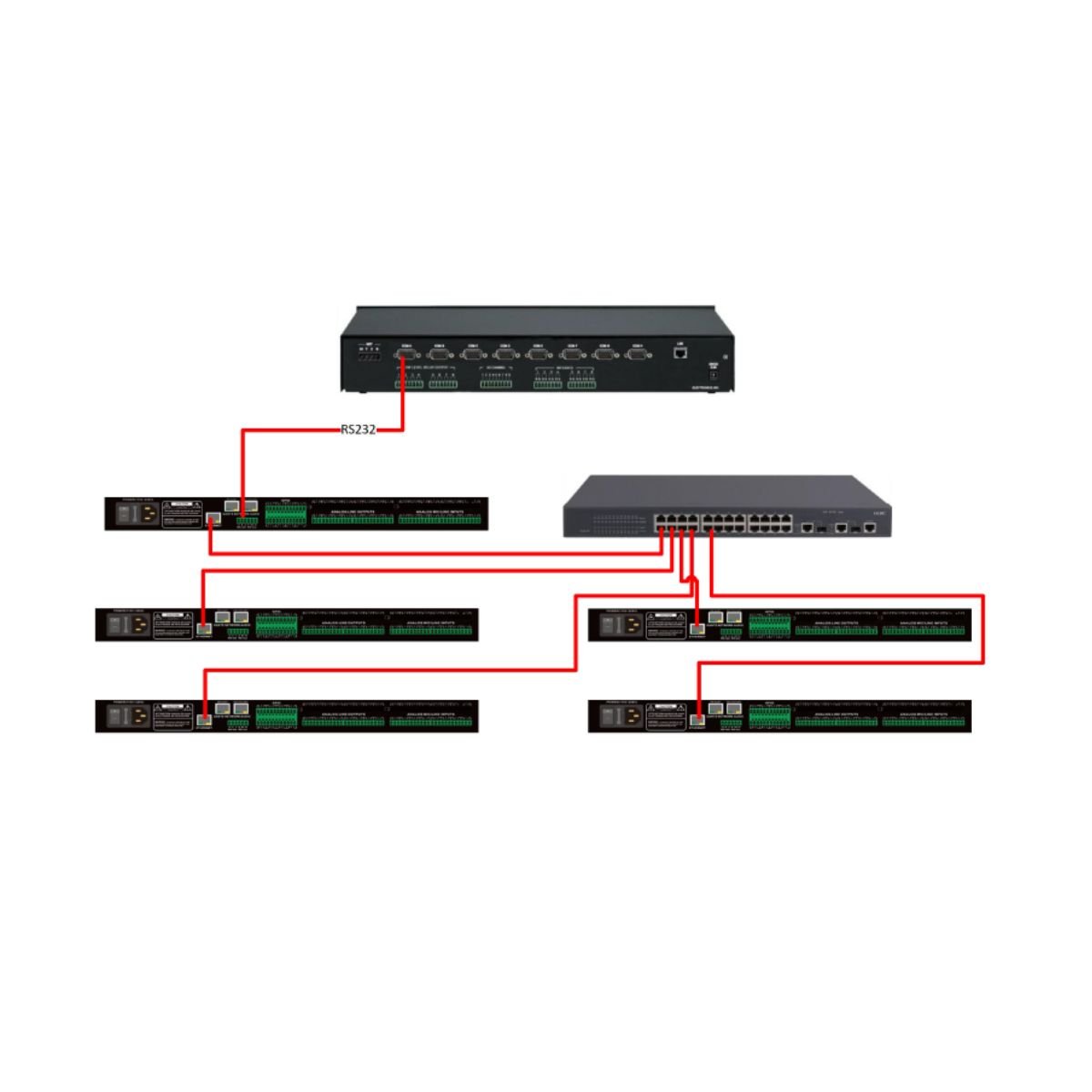

Matrix Audio Routing & Mixing

The MP-NL1208D Digital Sound Processor (DSP) is a professional audio processing solution designed for conference rooms, auditoriums, commercial installations, and live sound applications. Featuring advanced DSP algorithms, intuitive drag-and-drop programming, real-time signal visualization, Acoustic Echo Cancellation (AEC), intelligent noise suppression, automatic mixing, matrix routing, and comprehensive remote control, it delivers exceptional audio clarity, flexibility, and reliable system performance for modern AV environments.

Processor	ADI SHARC 21489(x2)
Sampling Rate/Bit Depth	48K/24bit
Input Gain	0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/ 48 dBu
Phantom Power	48V
Frequency Response (20~20KHz)	±0.3dB
Maximum Level	+18dBu
THD + Noise	0.003%4dBu
Dynamic Range	113 dB
Background Noise (A-weighted)	-91 dB
Common Mode Rejection Ratio 60Hz	80dB
