MP-WPC6K

ARM Cortex-A7 architecture 1.2Ghz main frequency
Linux system, 256MB RAM, 256MB ROM

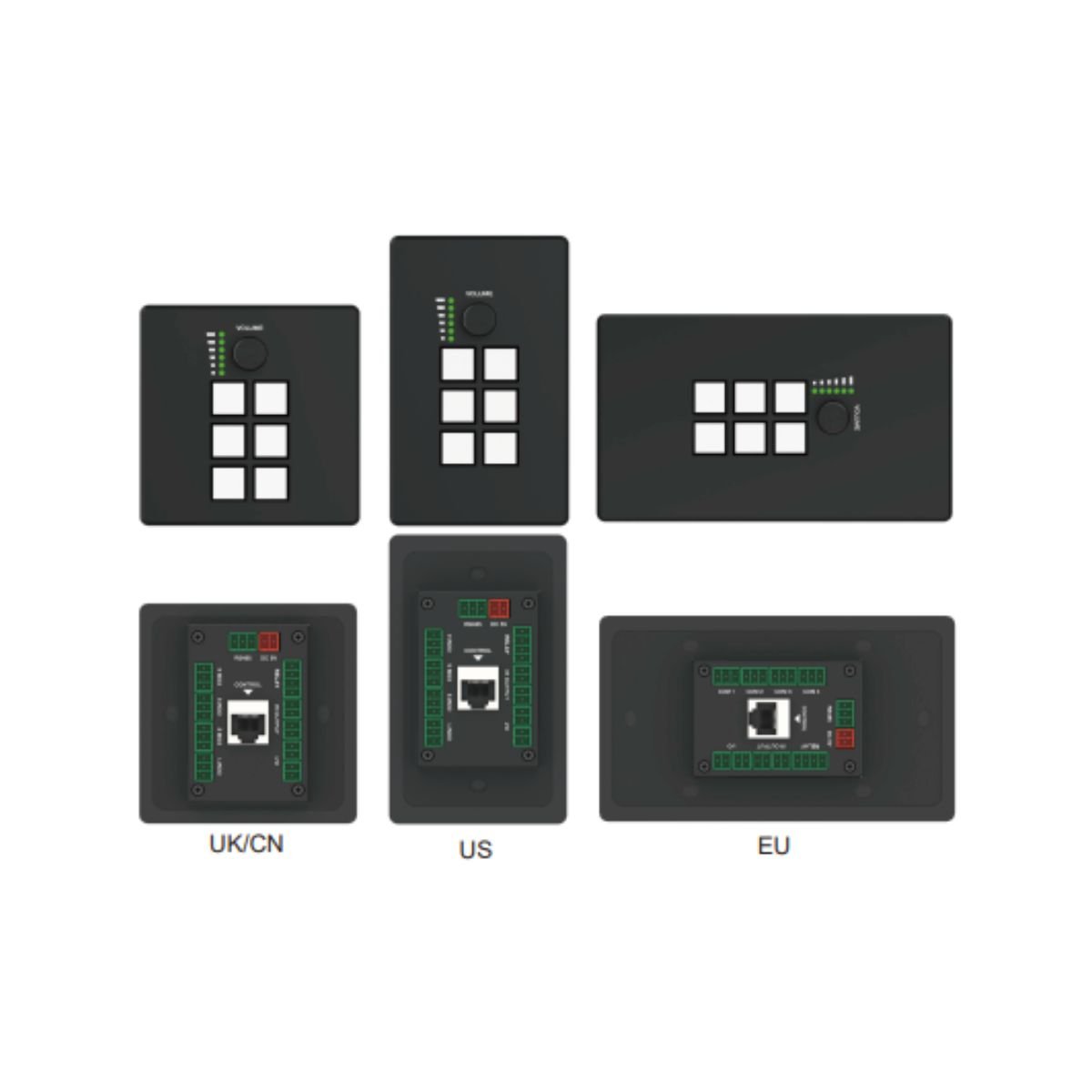

Installation specifications: UK/CN 86 box/US 1-Gang/EU 2-Gang
Magnetic aluminium panel design, beautiful and easy to replace
6 programmable buttons and 1 programmable knob, supporting light status feedback (with light indicators)
channel RS232 two-way serial communication ports, with configurable b
1-channel RS485 serial communication port, with configurable baud rate
2-channel isolated low-voltage relay ports

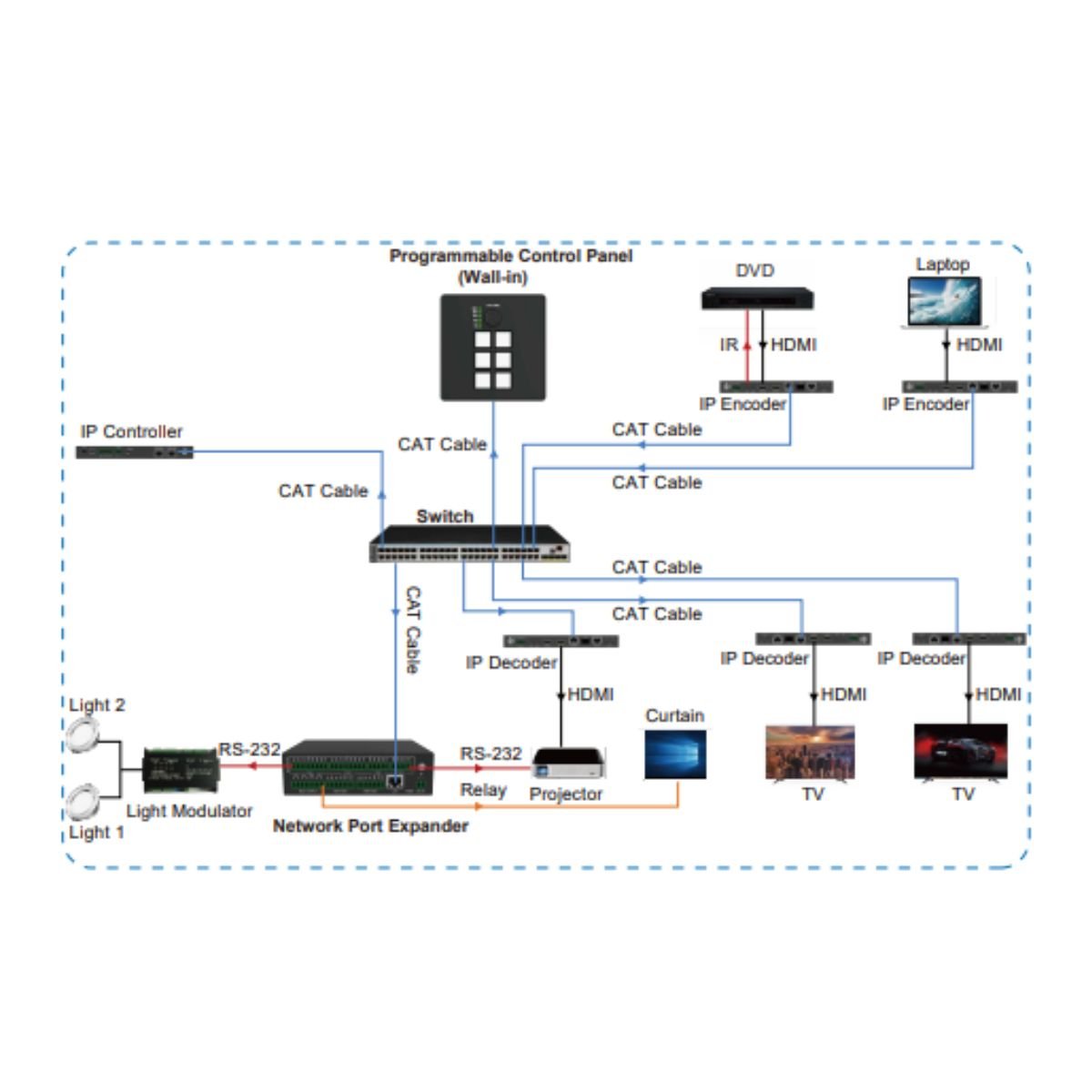

This intelligent control terminal is designed specifically for smart office and home scenarios, using an embedded wall mounting structure and is compatible
with EU/US/UK/CN standard cassette boxes. The control panel integrates 6 programmable buttons and 1 precision knob (with real-time numerical feedback function), equipped with RS232/RS485 serial port, IR remote control, relay signal, and universal I/O ports, supporting universal network protocol. Through modular configuration management, cross-device linkage control can be achieved, enabling the rapid construction of scenario-based solutions such as one-click switching of projection modes in conference rooms, collaborative operation of training center equipment, or intelligent guidance of exhibition venues.

CPU	ARM Cortex-A7 1.2GHz
Operation System	Linux
RAM	256MB
Flash Memory	256MB
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
COM 1/2/3/4	4× 3-pin phoenix connector, for RS232 serial data communication
RS485	1× 3-pin phoenix connector, for RS485 serial data communication
RELAY	2× 2-pin phoenix connector, isolated low-voltage relay port
IR OUTPUT	2× 2-pin phoenix connector, for IR signal output
I/O	2× 2-pin phoenix connector, for I/O input and output
CONTROL	1× 10M/100M Ethernet port, supporting PoE function
