MP-VW22

HDMI input up to 4Kx2K60Hz 4:4:4.
HDCP 2.2 and 1.x compliant.
Four HDMI output resolution fixed to be 1920x1080p.
Built in automatic up & down-scaling to 1080p output.

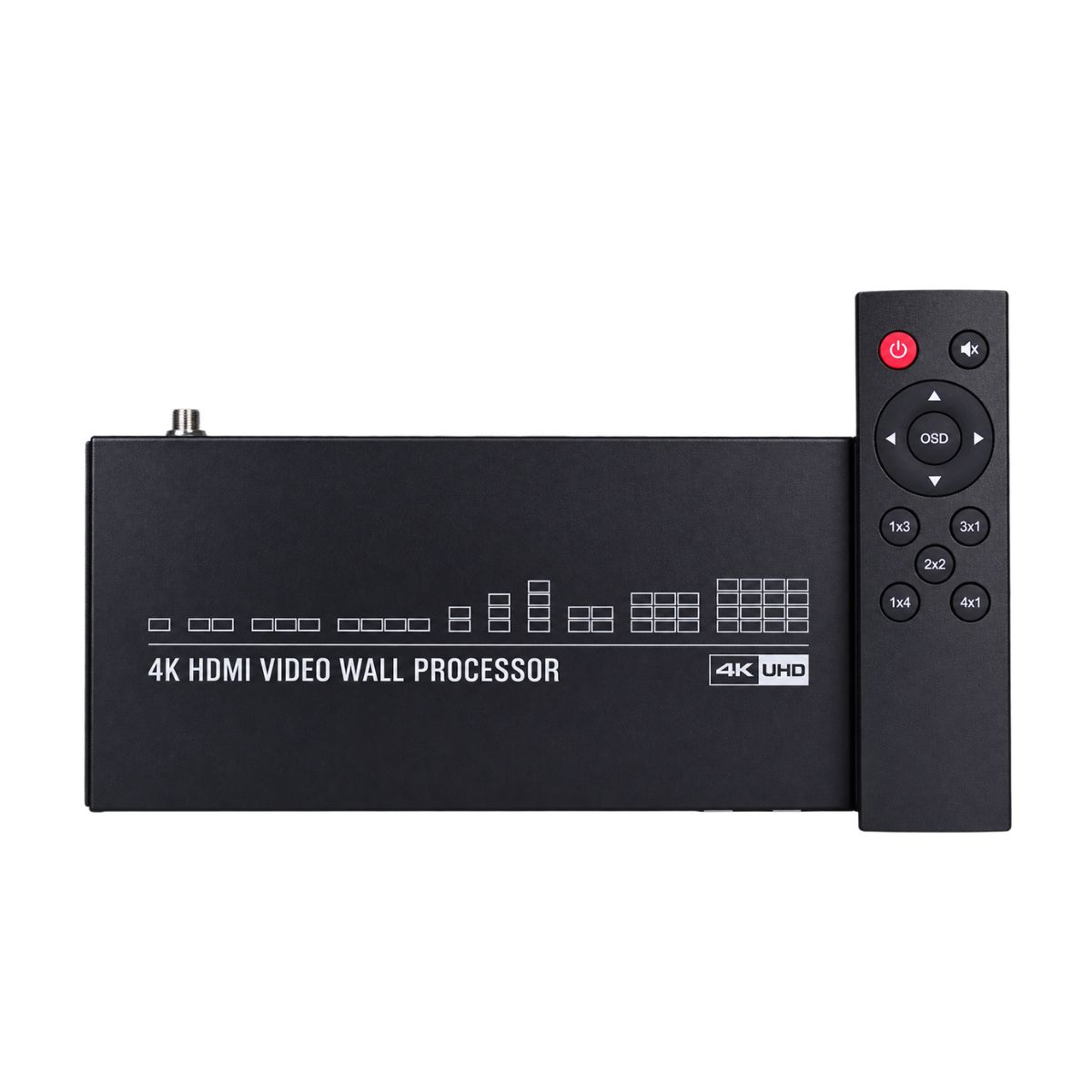

Controlled by front panel button and IR remote.
Nine video wall modes (1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 Rotation) selectable.

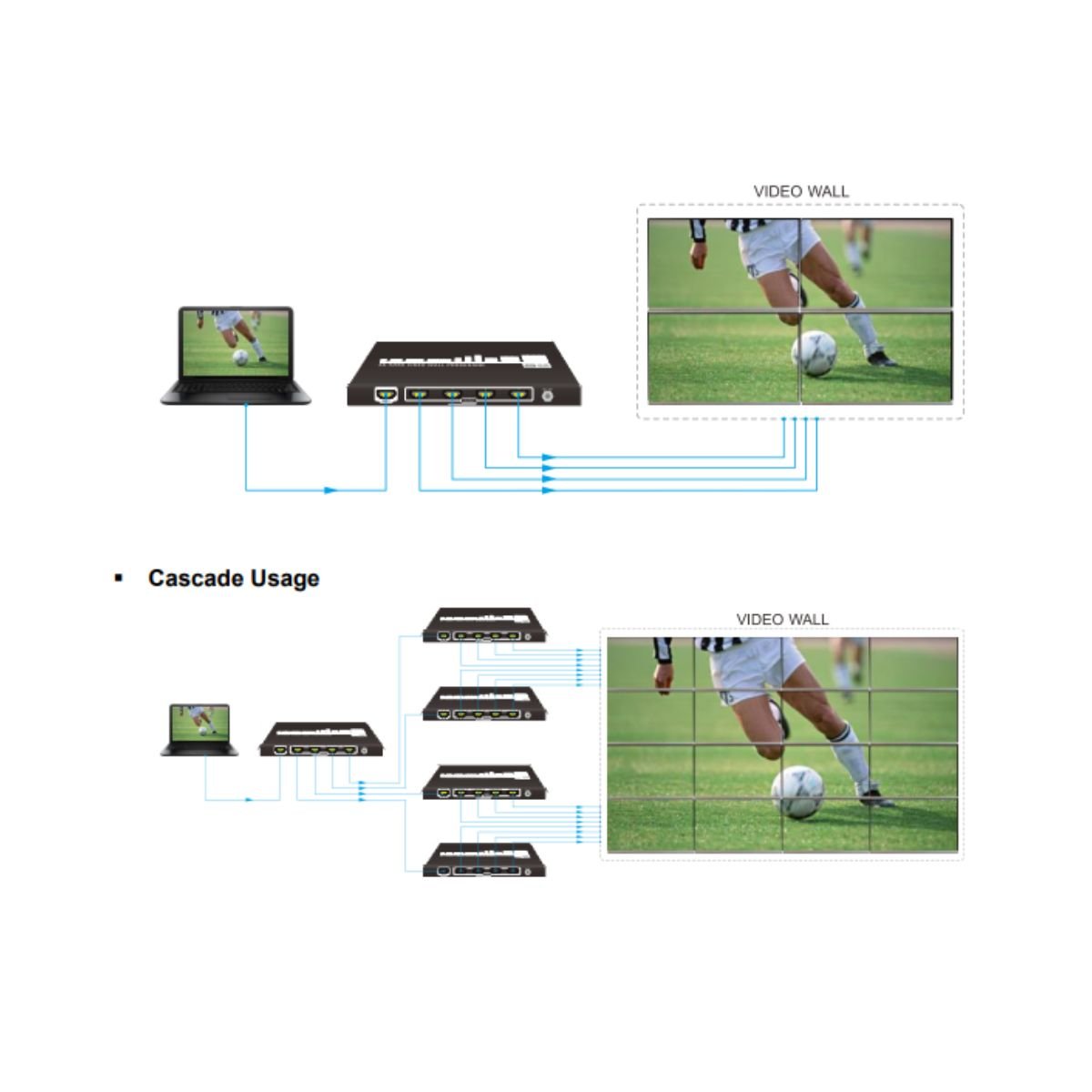

Cascadable for larger system.
Mute & Unmute optional for audio output.

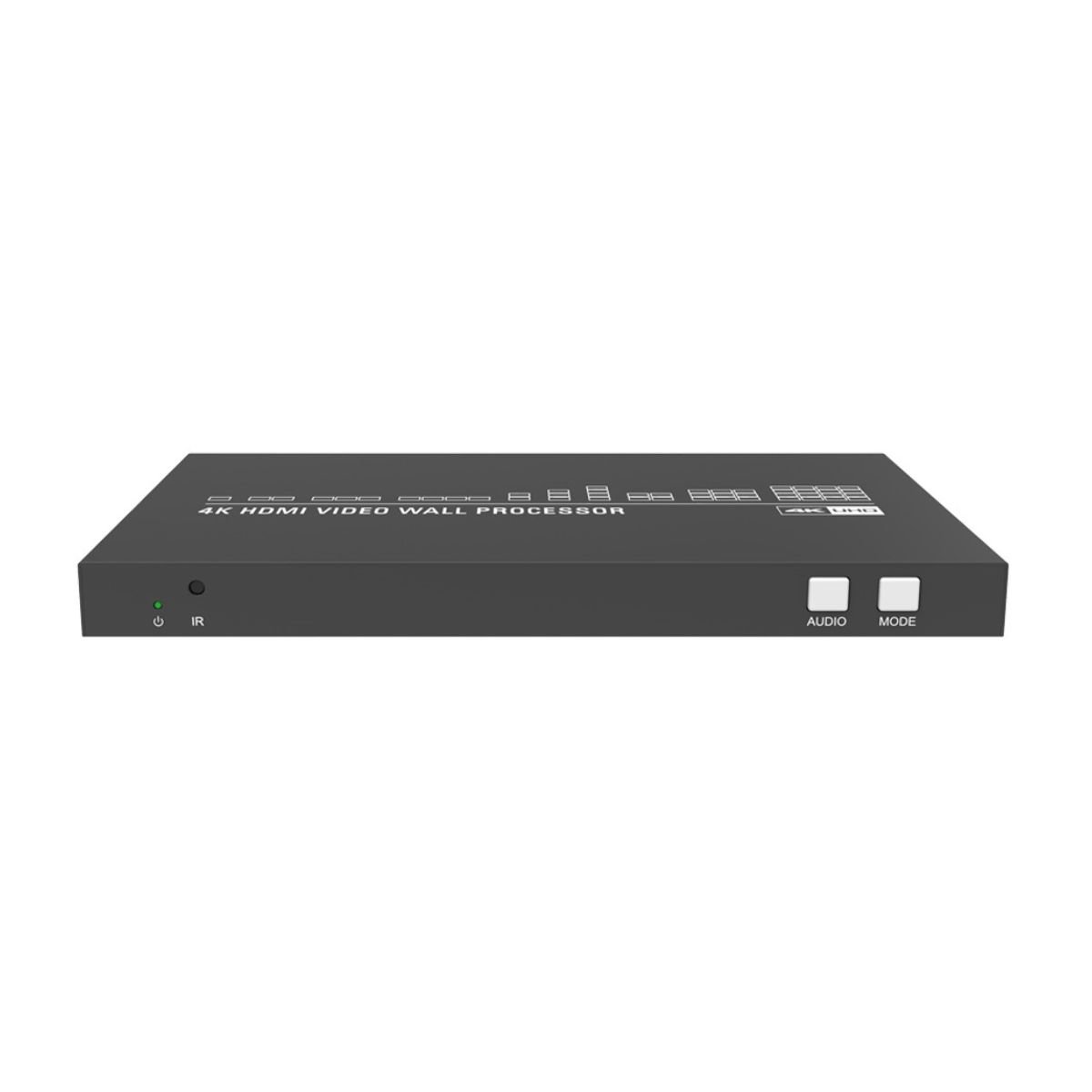

MP-VW22 is the 4K HDMI Video Wall Processor. The unit supports 1 HDMI input and 4 HDMI outputs. HDMI input supports resolutions up to 4Kx2K60Hz 4:4:4, and output resolution is fixed to be 1920x1080p60Hz. It supports 9 video wall modes, which can be selected via the front panel button and IR remote.

Input	(1) HDMI IN
Input Connector	(1) 19-pin type-A female HDMI
Resolution	Up to 4K60Hz 4:4:4
Output	(4) HDMI OUT
Output Connector	(1) 19-pin type-A female HDMI
Resolution	1920x1080p60Hz
HDMI input Version	Up to HDMI 2.0
HDCP input Version	Up to HDCP 2.2
Audio Format	Supports PCM2.0
