MPTP-TU100S-3.0D

USB3.2 Gen1 data transfer rate up to 5Gbps
Support extending the USB signal up to 100m
Support RS232 pass-through/control/upgrade
Support USB device power management
Bi-directional 24V PoC power supply

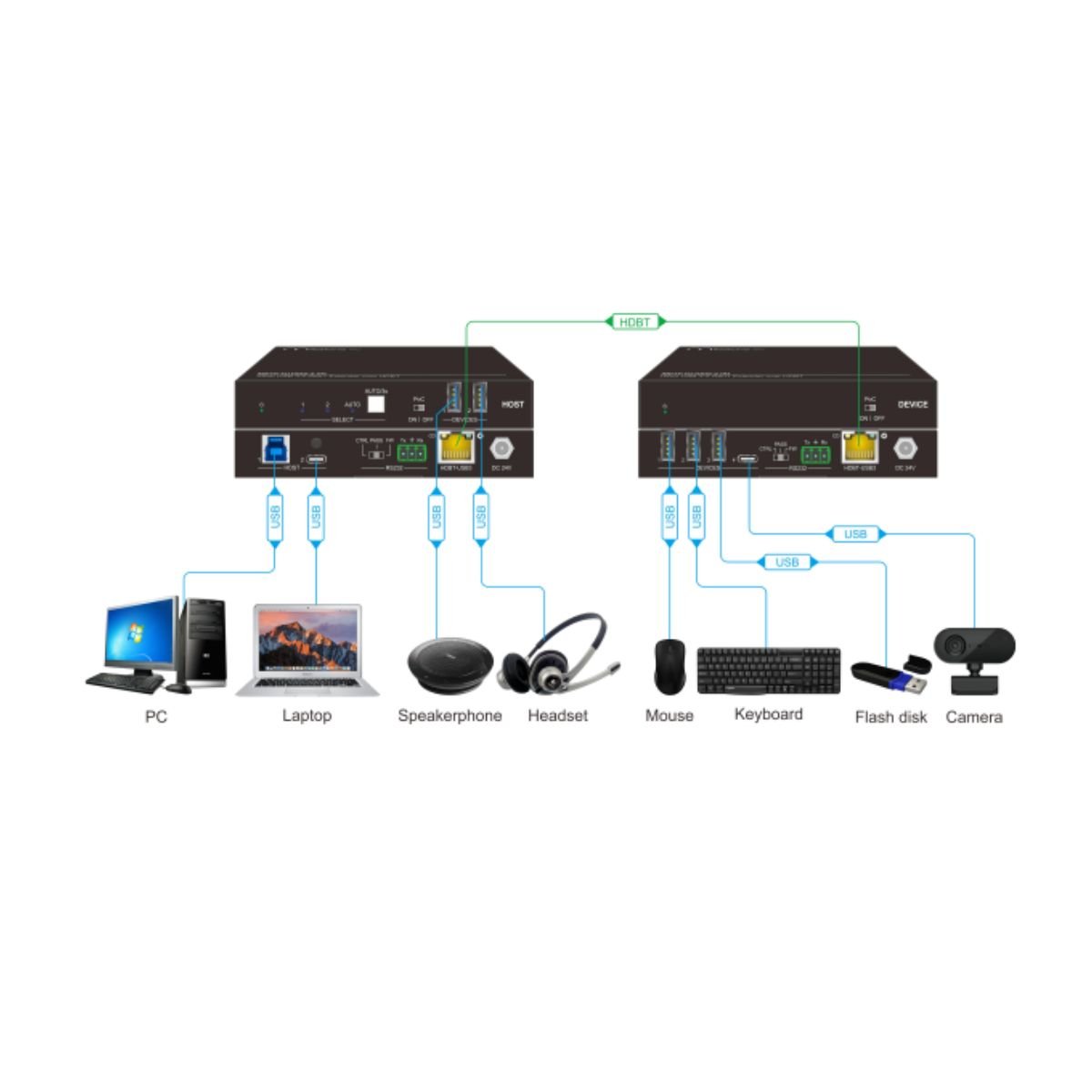

Thanks for choosing the 100m USB 3.2 Gen1 extender. The extender is designed to transmit a USB signal up to 100m. MPTP-TU100S-3.0D is the device port of the extender; it contains four USB ports. Applications include extending USB3conferencingcameras, video capture devices, and audio devices for boardrooms and conference rooms. It is also ideal for use with all USB peripherals in addition to USB3.2Gen1conference cameras, including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, audio devices, and other USB 3.2 Gen1 devices.

DevicesConnector	(3)Type-AUSB(1)Type-CUSB
DevicesPower	Devicesshare3Acurrent limit; Singleportpowersupplymaximumlimit1.7A.
USBVersion	USB3.2Gen1
Control	(1)3-pinterminalblock(1)2-pinDIPswitch
Transmitdistance	Upto100mwithCAT6Acable (Thecurrentversiononlyreachesthe70mextension)
DataRate	5Gbps
OperationTemperature	-10℃~+55℃
StorageTemperature	-25℃~+70℃
RelativeHumility	10%~90%
