MPTP-HDUC

USB-C video up to 4K60Hz 4:4:4
Transmit 4K60Hz 4:4:4 or 1080p up to 100m
Supports two-way 24V PoC
Provide PD charging for USB-C IN
Extra USB-A for KVM control

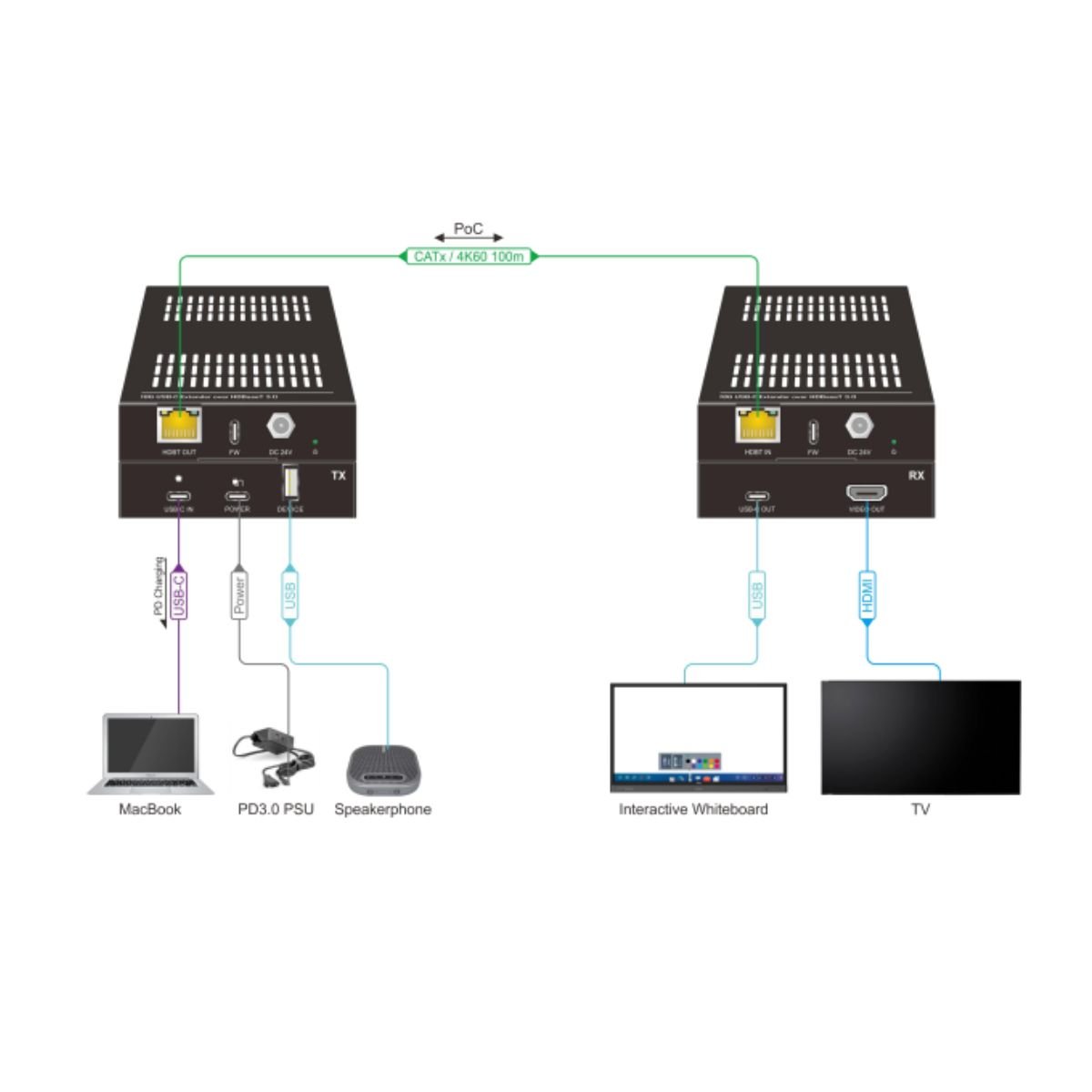

MPTP-HDUC is an extender that delivers crystal-clear video transmission with USB-C input supporting resolutions up to 4K60Hz 4:4:4 or 1080p video signals over
distances up to 100 meters, ensuring reliable performance across long cable runs. The system supports two-way 24V Power over Cable (PoC), simplifying installation by allowing power to be supplied from either end. Additionally, the USB-C input benefits from PD charging, keeping connected devices powered during use. An extra USB-A port enables KVM control, making it ideal for interactive workspaces and remote desktop applications.

Video Input	1 x USB-C, up to 4K60Hz 4:4:4 in DPAlt Mode.
Audio Input	1 x USB-C, for digital audio input
Video Output	1 x RJ-45 for HDBT OUT
USB-C Power	1 x USB-C with PD 3.0, up to 100W
USB-A	1 x USB 2.0 Type-A

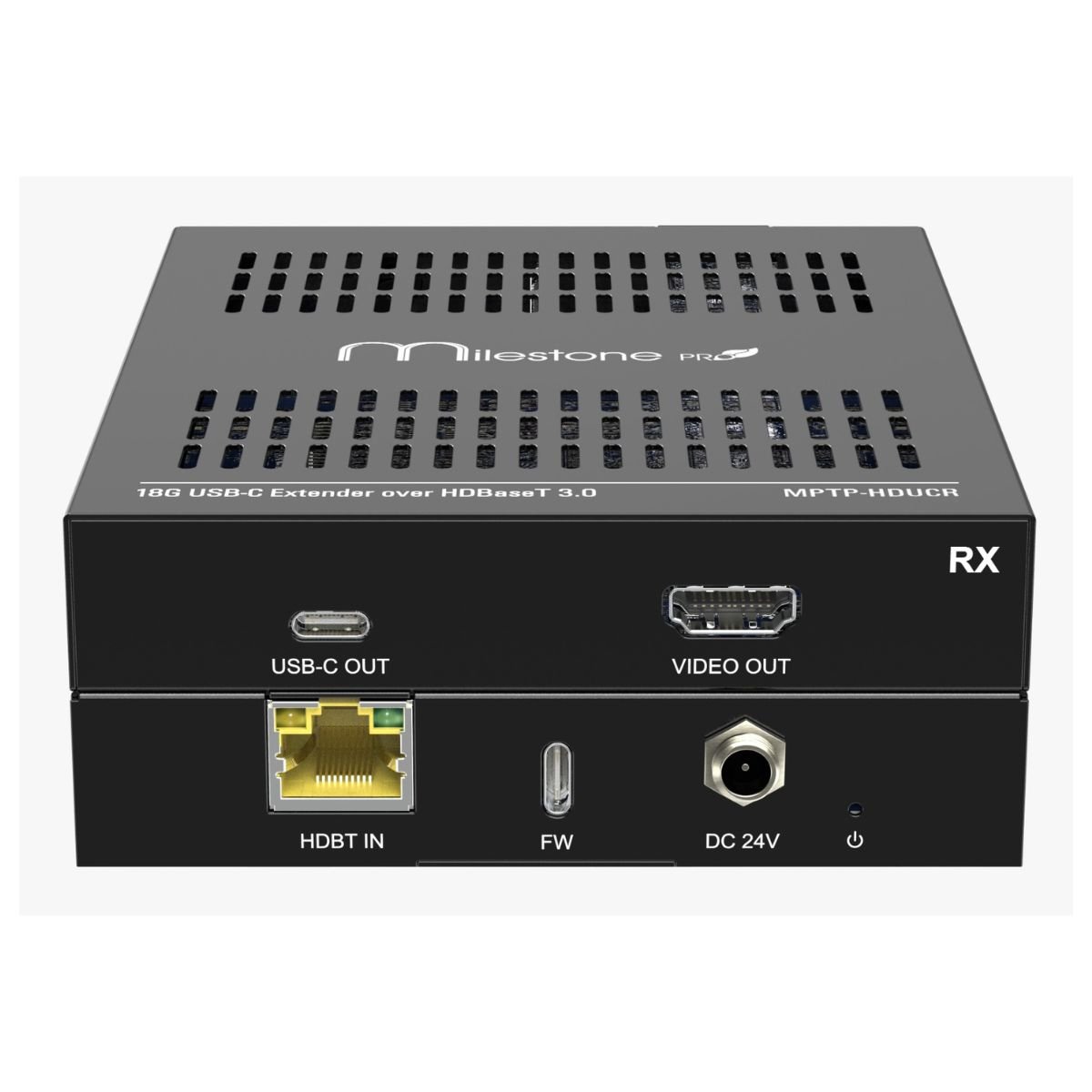

Video Input	1 x RJ-45 for HDBT IN
Video Output	1 x USB-C, up to 4K60Hz 4:4:4 in DPAlt Mode, Provide up to 5V/0.5A
Audio Output	1 x USB-C, 1 x HDMI 2.0 Type-A, both for outputting digital audio
Control	1 x USB-C, for transmitting motion commandsfromthe USB-C touch screen.
HDBT Standard	HDBaseT 3.0
HDBT Transmission Distance	4K60Hz 4:4:4 or 1080p 100m
