MP-PA40IP

Balanced L/R audio input
Supports EQ adjustment for master/bass/treble.

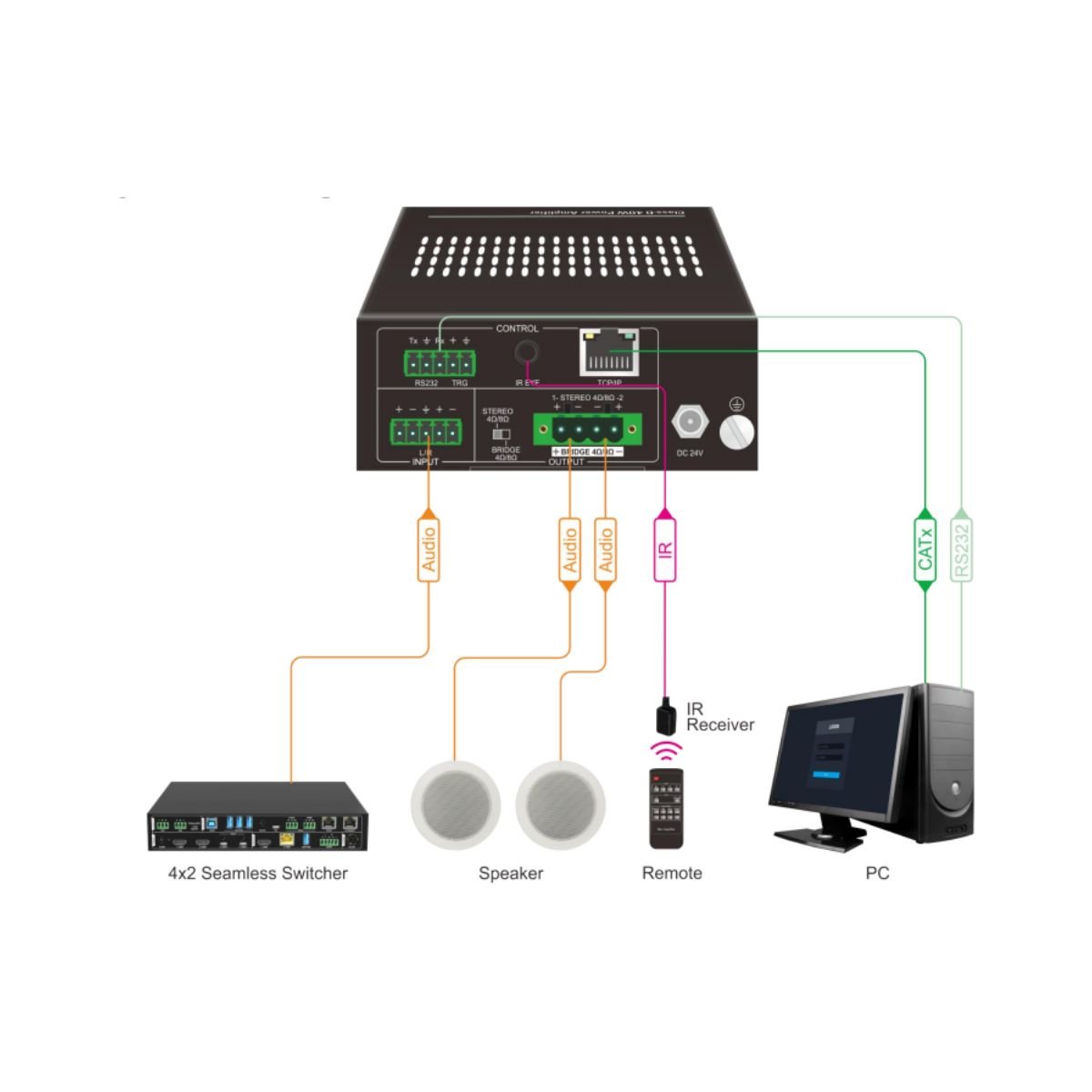

Controllable via buttons, RS-232, TCP/IP or IR(optional).
Supports 2x20W4/2x10W8 stereo or 1x40W4/1x20W8bridge out.

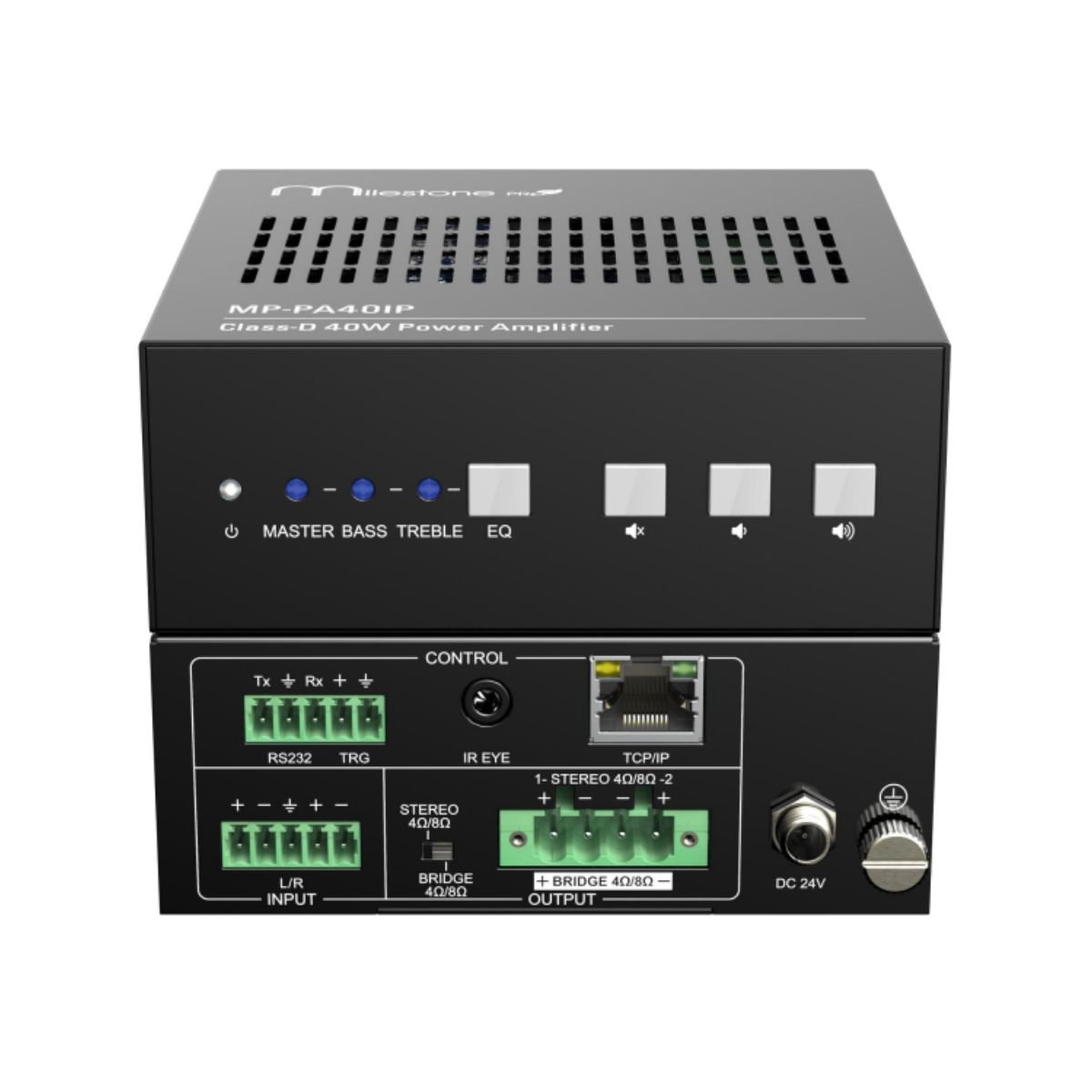

The MP-PA40IP is a 40W Class-D amplifier that supports balanced audio input. It supports stereo/bridged output, featuring an adjustable EQ for sound customization. Controllable via front-panel buttons, RS-232, or TCP/IP for local and remote management, with an optional IR remote for added flexibility.

Input	Balanced L/R audio
Output	Stereo 4/8 or bridged 4/8
Stereo Output	4: 2x20W 8: 2x10W
Bridged Output	4: 1x40W 8: 1x20W
Frequency Response	20Hz-20kHz, ±3dB
THD+N	<0.1% 1kHz
SNR	>80dB (1kHz sine, A weighting)
Crosstalk	< -80dB1kHz
Power Supply	DC 24V 2.71A
Operation Temperature	-5℃ ~ +55℃
Storage Temperature	-20℃ ~ +70℃
Relative Humility	10% ~ 90%
Dimension (WHD)	115 x 44 x 125mm
Net Weight	565g
