MP-SC-9T

Compliant with HDMI 1.4 and HDCP 2.2.
Supports video source auto-switching function.
HDBaseT input with distances up to 70m (230ft) at 1080p and 40m (131ft) at 4K on a single CAT5e/6/7 cable.
HDBaseT output with distances up to 100m (328ft) at 1080p and 70m (230ft) at 4Kx2K on a single CAT5e/6/7 cable.
Output resolutions selectable to assure preferred output, and supports various output resolutions, such as 1280x720(default), 1920x1080, 1024x768, 1360x768, 3840x216030Hz, 3840x216060Hz.
DP, HDMI and VGA video inputs can be embedded with external audio.
Support Line or Mic audio inputs, and MIC port supports balance/unbalance signal, suppress the external noise effectively.
Controllable via buttons, IR Remote, RS232 and GUI.
Powerful OSD function.

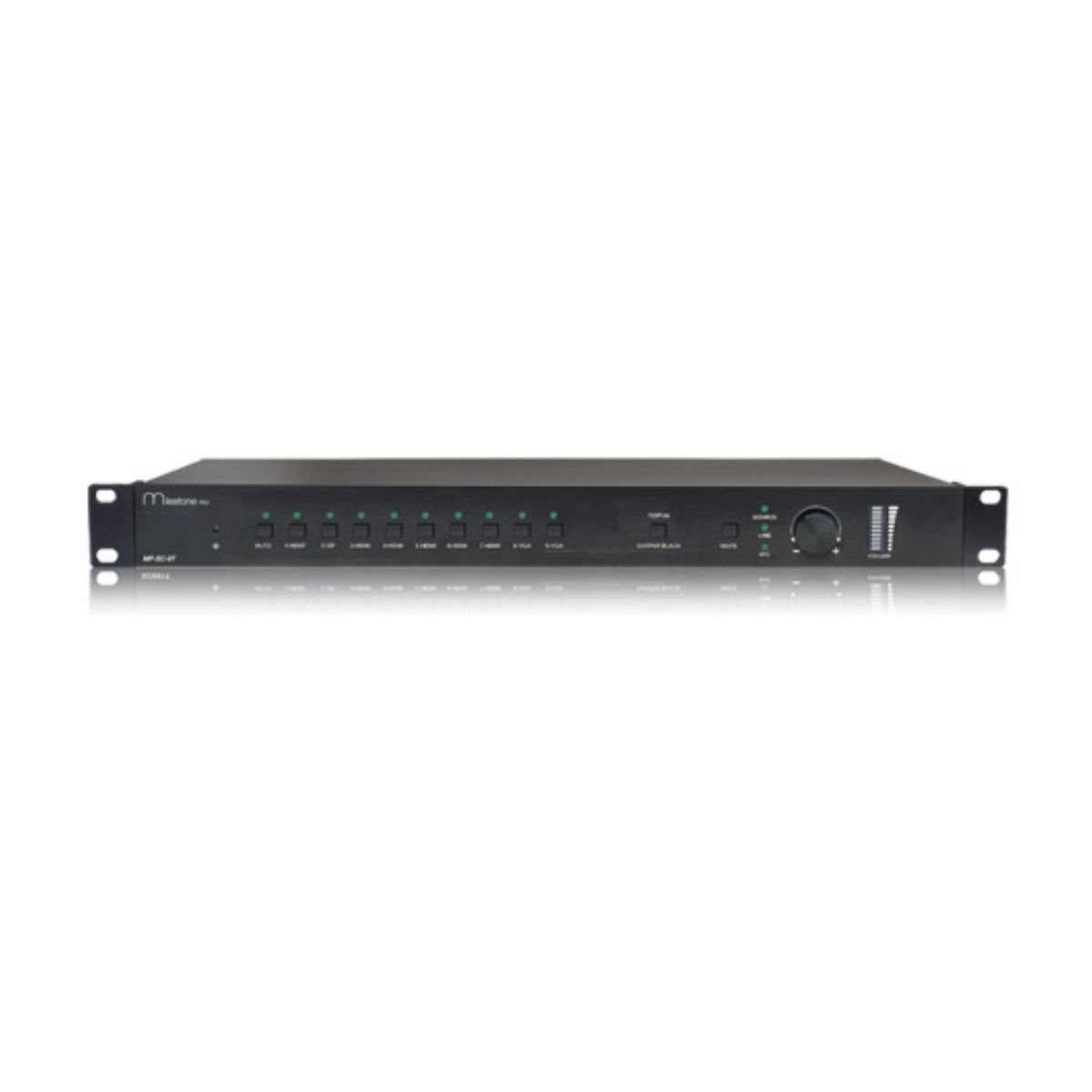

MP-SC-9T is a 9-input multi-format A/V presentation auto 4k Scaler Switcher that scales video signals to HDMI and HDBaseT outputs simultaneously. The HDBaseT output supports 48V PoH and can connect to a compatible HDBaseT Receiver up to a maximum of 100 meters (328ft). With 1 IR ALL IN and 1 IR ALL OUT, the IR control signals can be transmitted bi-directionally between the MP-SC-9T and compatible HDBaseT Receiver or HDBaseT Transmitter. It can be controlled either by front panel buttons, IR Remote, RS232, or GUI. With a microphone input that supports phantom power and a balanced stereo audio output for audio reinforcement, the MP-SC-9T can handle a myriad of A/V applications.

No sidebar links found

Input	(1) HDBaseT;(1) Display Port; (5) HDMI; (2) VGA
Input Connector	(1) RJ45; (1) Female Display Port; (5) Type A HDMI; (2) 15-pin Female VGA
Input Video Resolution	Up to 4Kx2K60Hz 4:2:0
Video Output	(1) HDMI; (1) HDBaseT
Video Output Connector	(1) Type A HDMI; (1) RJ45
Output Video Resolution	1280x720 (default), 1920x1080, 1024x768, 1360x768, 3840x216030Hz, 3840x216060Hz
Video Standards	HDMI 1.4 and HDCP 2.2
