MP-DA8UHD-4K

Supports HDMI V2.0 and the video resolution up to 4K60Hz 4:4:4
HDMI input supports HDCP 2.2 and the outputs support HDCP1.4
Compatible with HDMI AOC cable, provides up to 5V 200mA power on each output
Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display
18Gbps high bandwidth
Advanced EDID management: multiple preset and user defined allowed
Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
Supports CEC control to turn on/off displays and adjust their volume

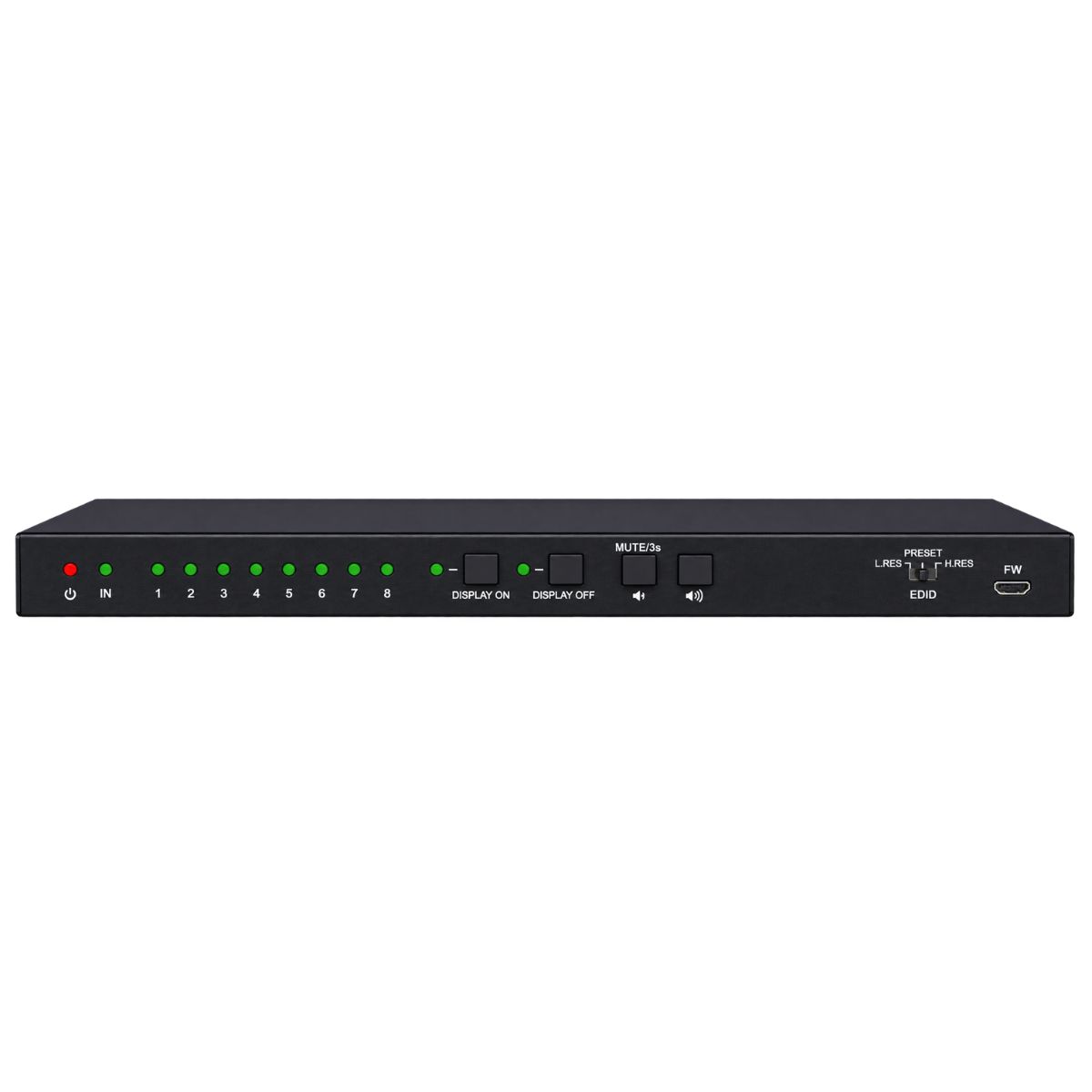

Provides LEDs to indicate the current operating status and to assist troubleshooting and installation

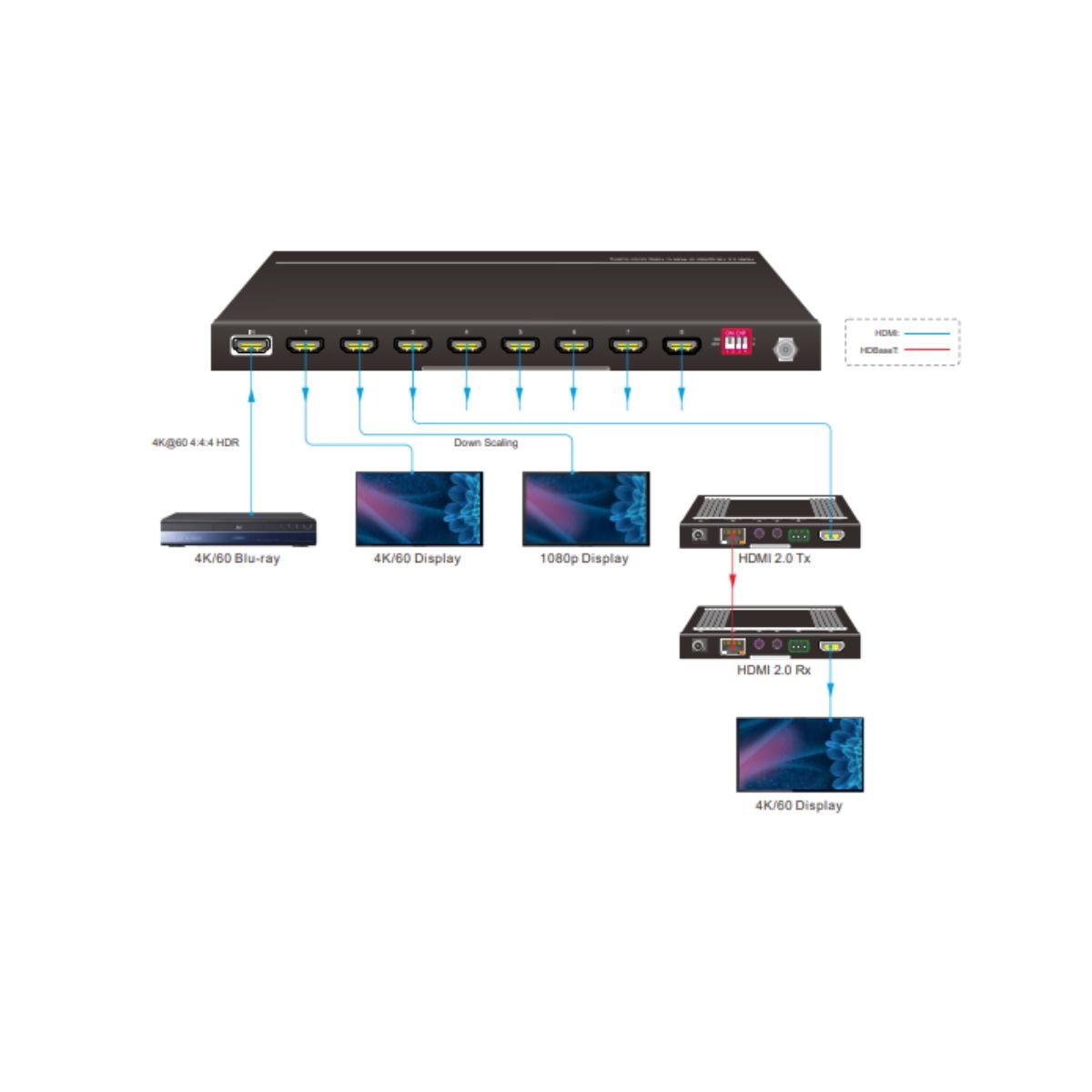

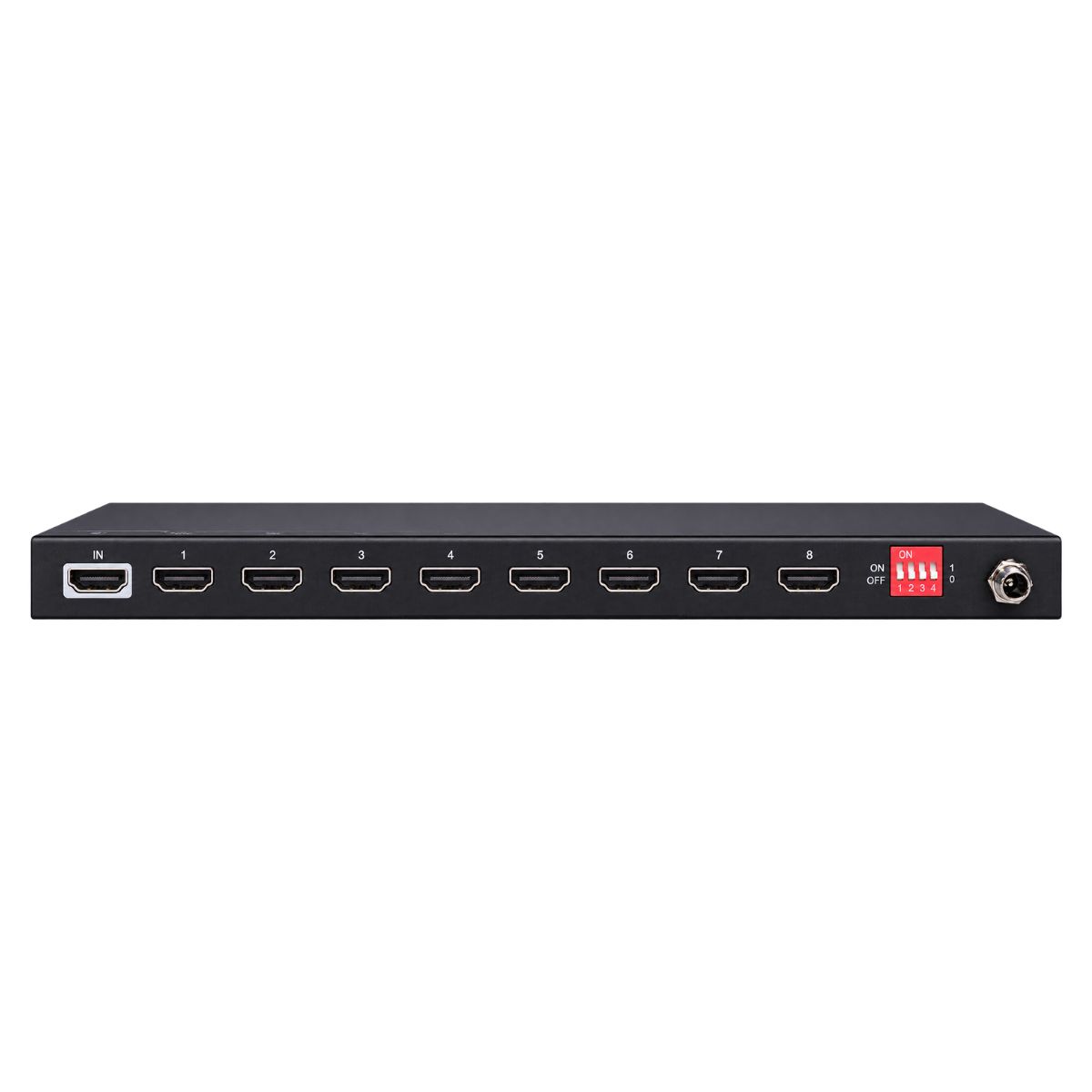

MP-DA8UHD-4K is an HDMI V2.0 1×8 Splitter, which can distribute one HDMI input to eight outputs. The splitter supports HDMI video resolution up to 4K60Hz 4:4:4, 1080p 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel. CEC technology is adopted to turn on/off displays and adjust volume using the control buttons on the front panel. Moreover, it supports convenient firmware upgrade through the Micro-USB port.

Input	(1) HDMI
Input Connector	(1) Female type-A HDMI
HDMI Input Resolution	Up to 4K60Hz 4:4:4 8bit
HDMI Output	Supports up to 5V 200mA power for AOC cable
HDMI Standard	2.0
HDCP Version	2.2
CEC	Supported
Output	(8) HDMI
Output Connector	(8) Female type-A HDMI
HDMI Output Resolution	Up to 4K60Hz 4:4:4 8bit
HDMI Standard	2.0
