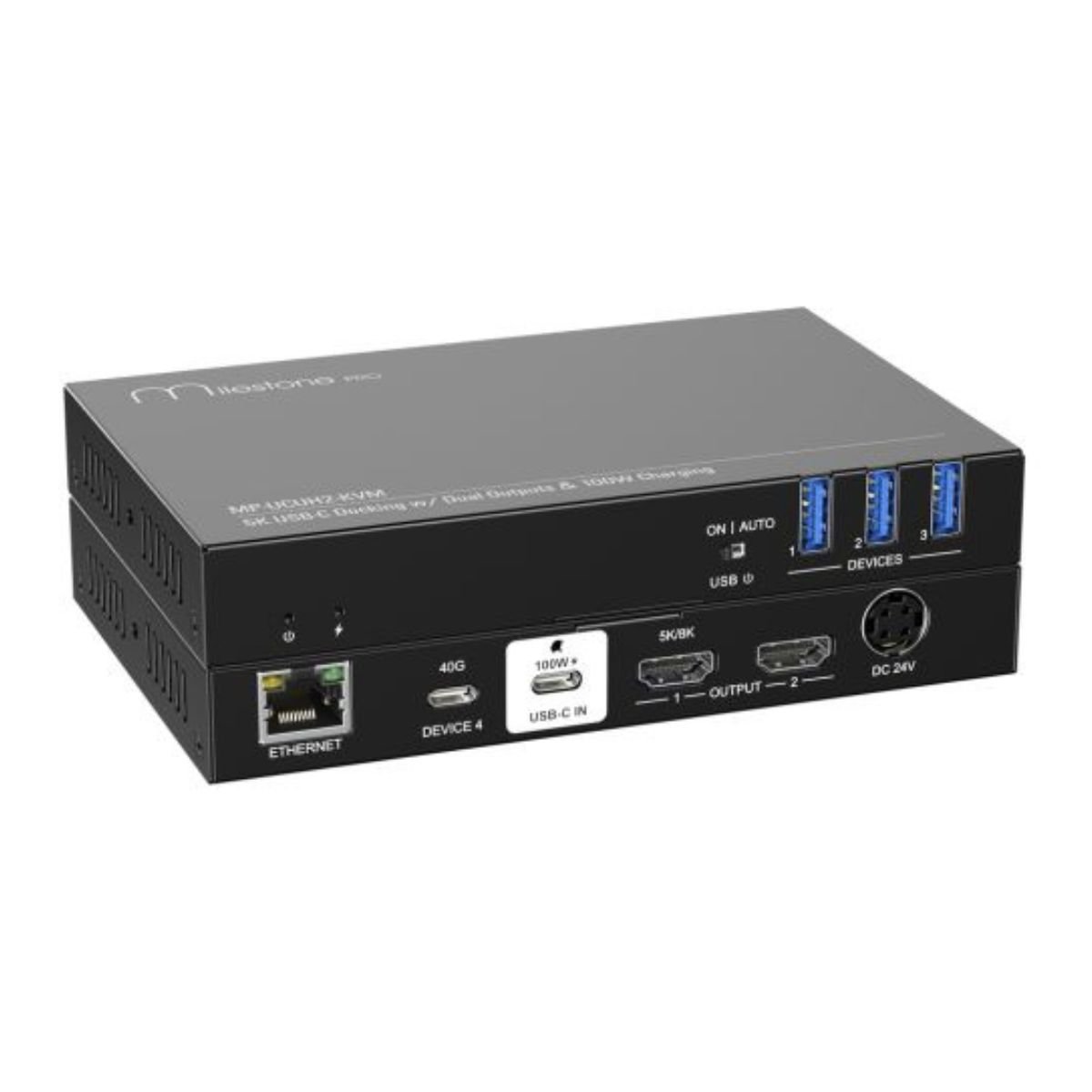

MP-UCUH2-KVM

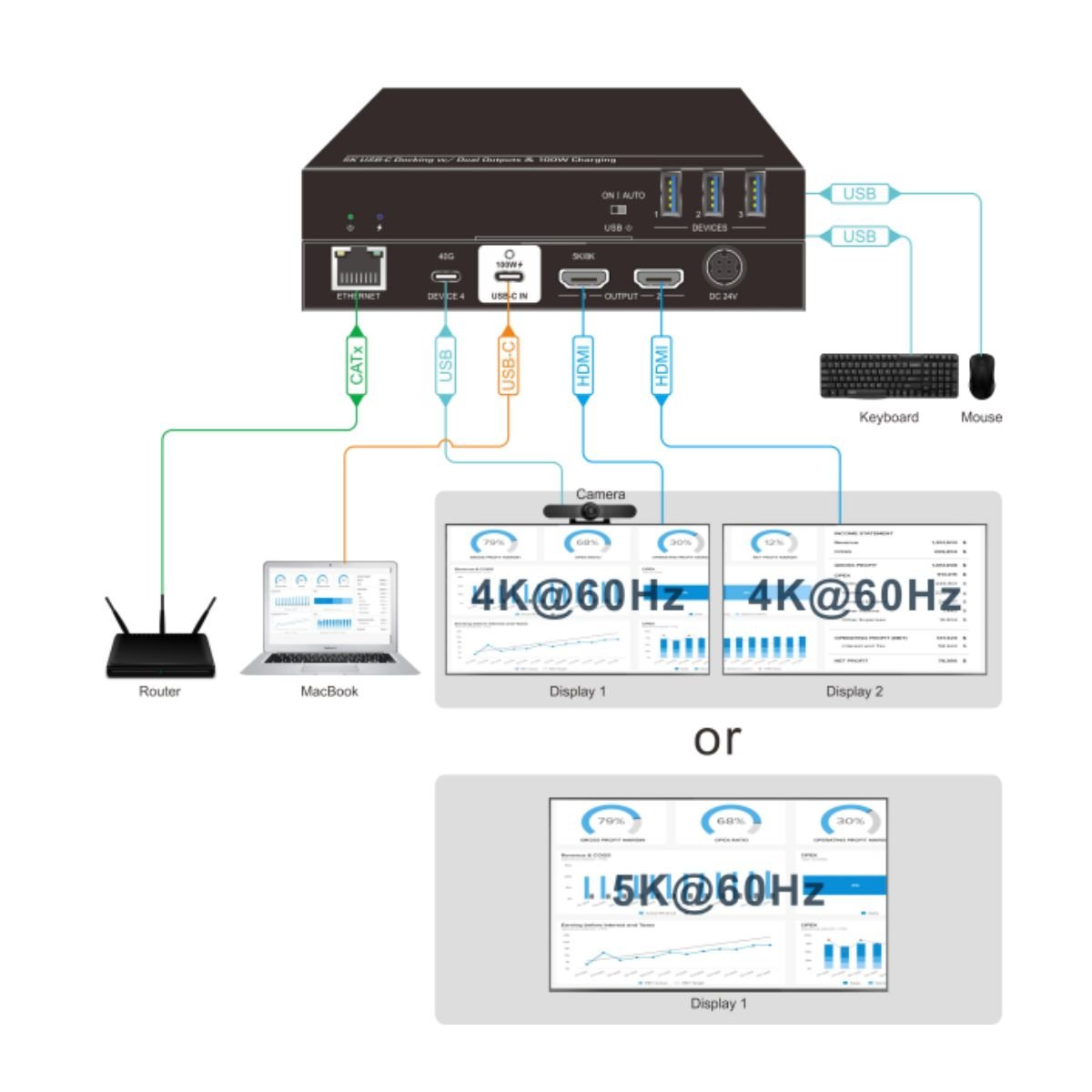

Supports single 5K60Hz (5120x2880) UHD or dual 4K60Hz display outputs
4 ports hub with 3x USB-A & 1x USB-C devices
PD 3.0 100W charging (For USB-C input)
1 Gigabit Ethernet for network passthrough
Supports USB power control – follow host or always on
Plug-and-Play, no driver needs to be installed

The MP-UCUH2-KVM is a USB4 40G switcher Docking Station w/100WChargingandsupports single 5K60Hz (5120×2880) UHD or dual 4K60Hz display outputs. The upstream USB-C port provides PD 3.0 100W to the host computer, while the downstream USB-C port provides 15W power for peripherals. It also supports USB power control and device extension (4 ports) by providing three USB3.2Gen2Type-Aports for KVM devices with DC5V3A power shared.

Input	(1)DPAltMode, USB4
InputConnector	(1)USB-C
InputResolution	Upto8K30
Output	(2)HDMI
OutputConnector	(2)HDMI2.0Female
OutputResolution	8K30/5K60Hz(5120x2880)UHDinoutput1 Ordual4K60Hzdisplayoutputs
HDMIStandard	HDMI2.1
HDCPVersion	HDCP1.4/2.2/2.3compatible
AudioFormat	PCM2.0audio, DolbyAtmos®, Dolby®TrueHD, DolbyDigital®Plus
