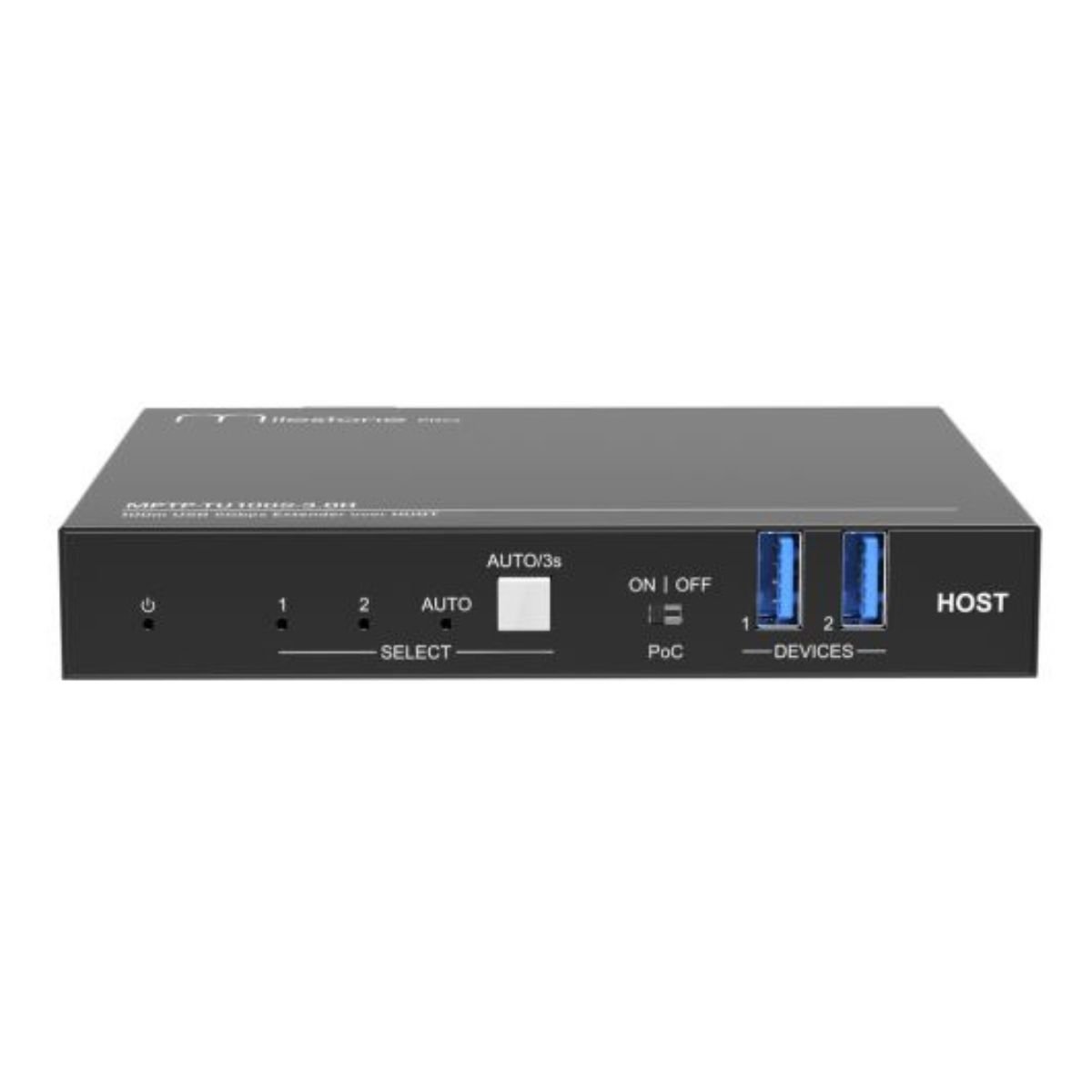

MPTP-TU100S-3.0h

2x1USB3.2Gen1switcher
Support extending the USB signal up to 100m
Support RS232 passthrough/control/upgrade
Auto/manual switching mode
Bi-directional 24V PoC power supply

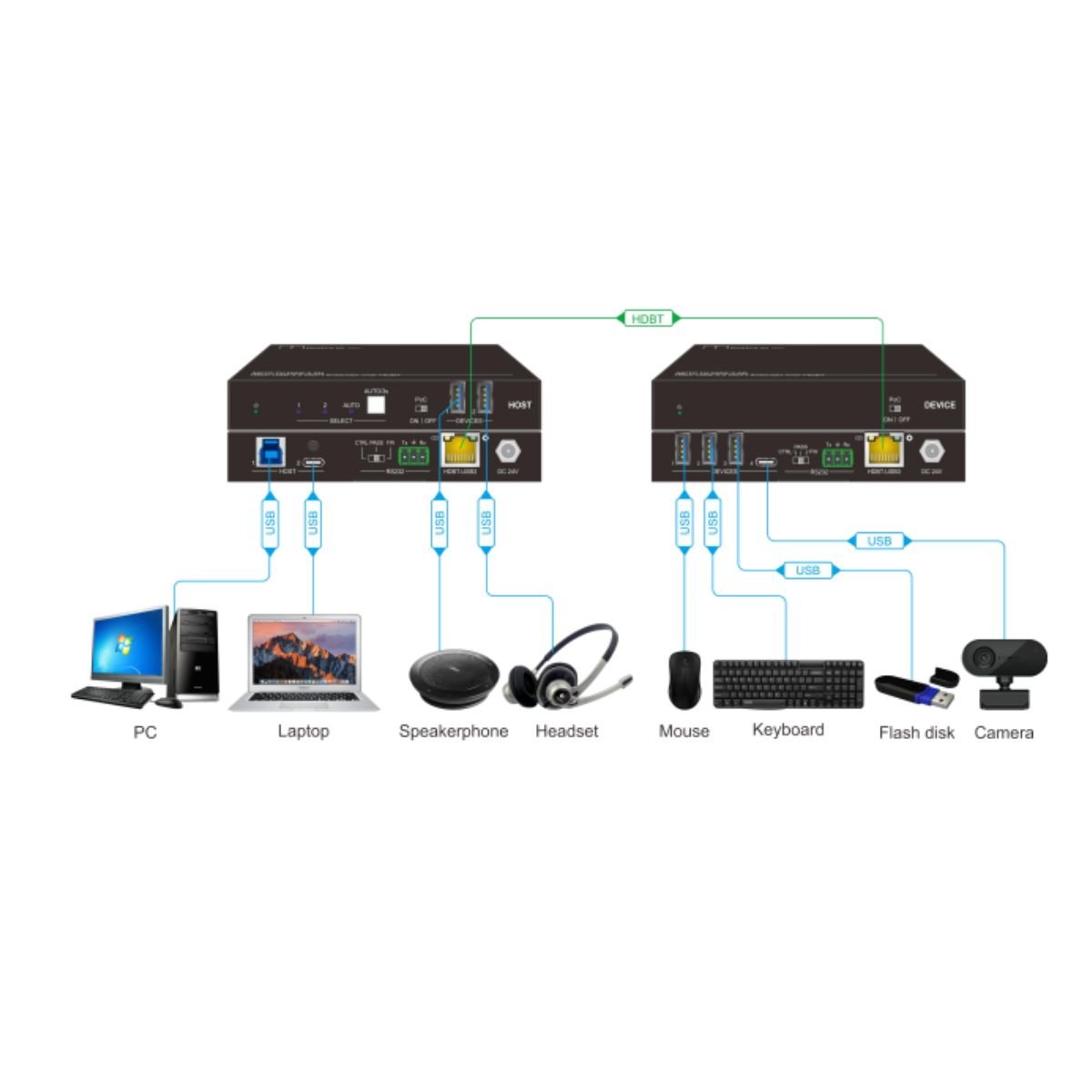

Thanks for choosing the 100m USB 3.2 Gen1 extender. The extender is designed to transmit a USB signal up to 100m. MPTP-TU100S-3.0H is the host port of the extender, which contains one Type-B and one Type-C for PC or laptop connections. It also has two local USB-A ports with a 5V500mA power supply for speakerphone and headset. The extender also supports bi-directional 24V PoC power.

HostConnector	(1)Type-BUSB(1)Type-CUSB
DevicesConnector	(2)Type-AUSB
DevicesPower	5V500mAtotal
USBVersion	USBVersion
Control	(1)Button,(1)RS232,(1)DIPswitch
ControlConnector	(1)WhiteButton,(1)3-pinterminalblock,(1)2-pinDIPswitch
Transmitdistance	Upto100mwithCAT6Acable (Thecurrentversiononlyreachesthe70mextension)
DataRate	5Gbps
OperationTemperature	-10℃~+55℃
StorageTemperature	-25℃~+70℃
