MP-DN-D9

HDMI ARC audio output.
Supports AES67 protocol
Controllable via Dante Controller
Powered by PoE or DC 5V.

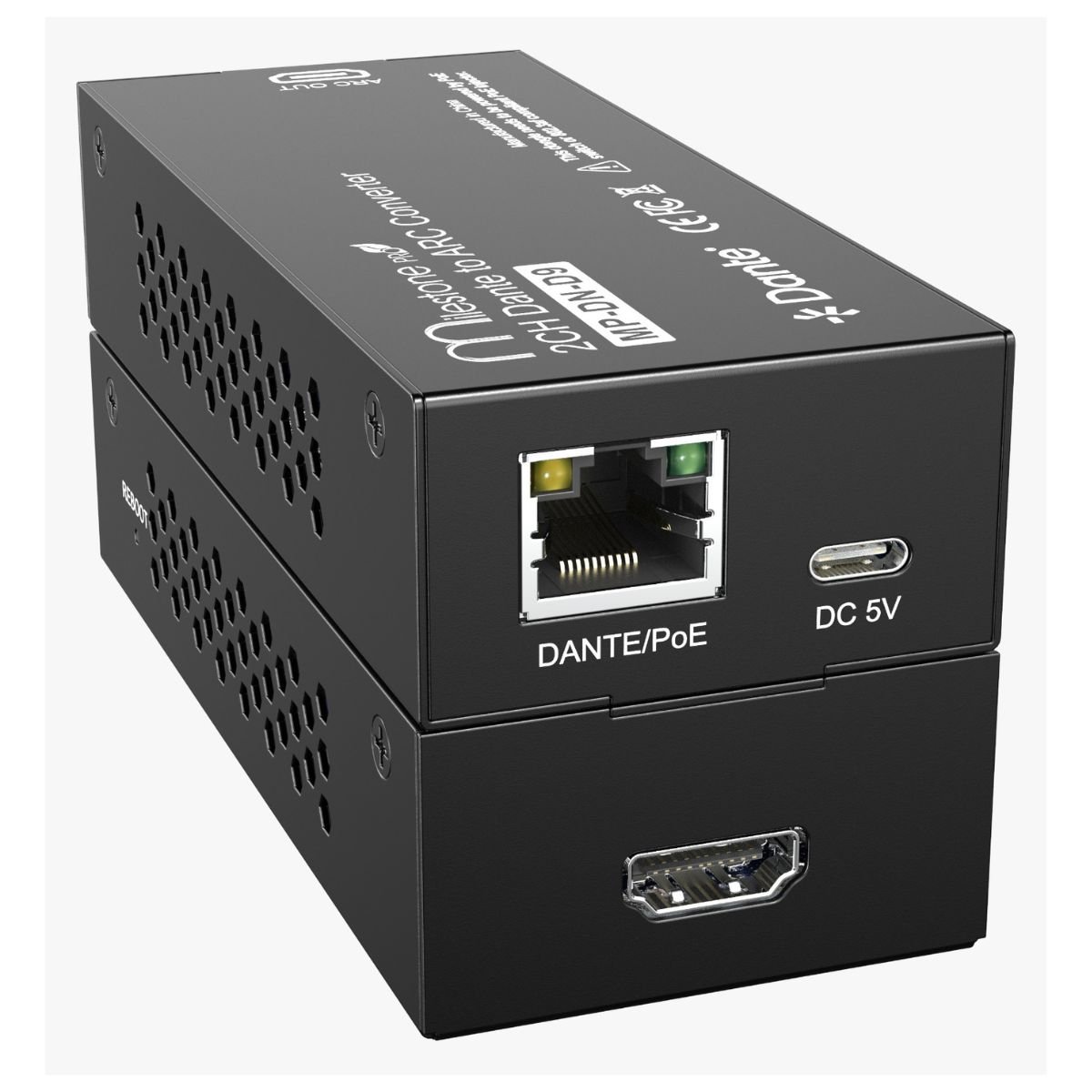

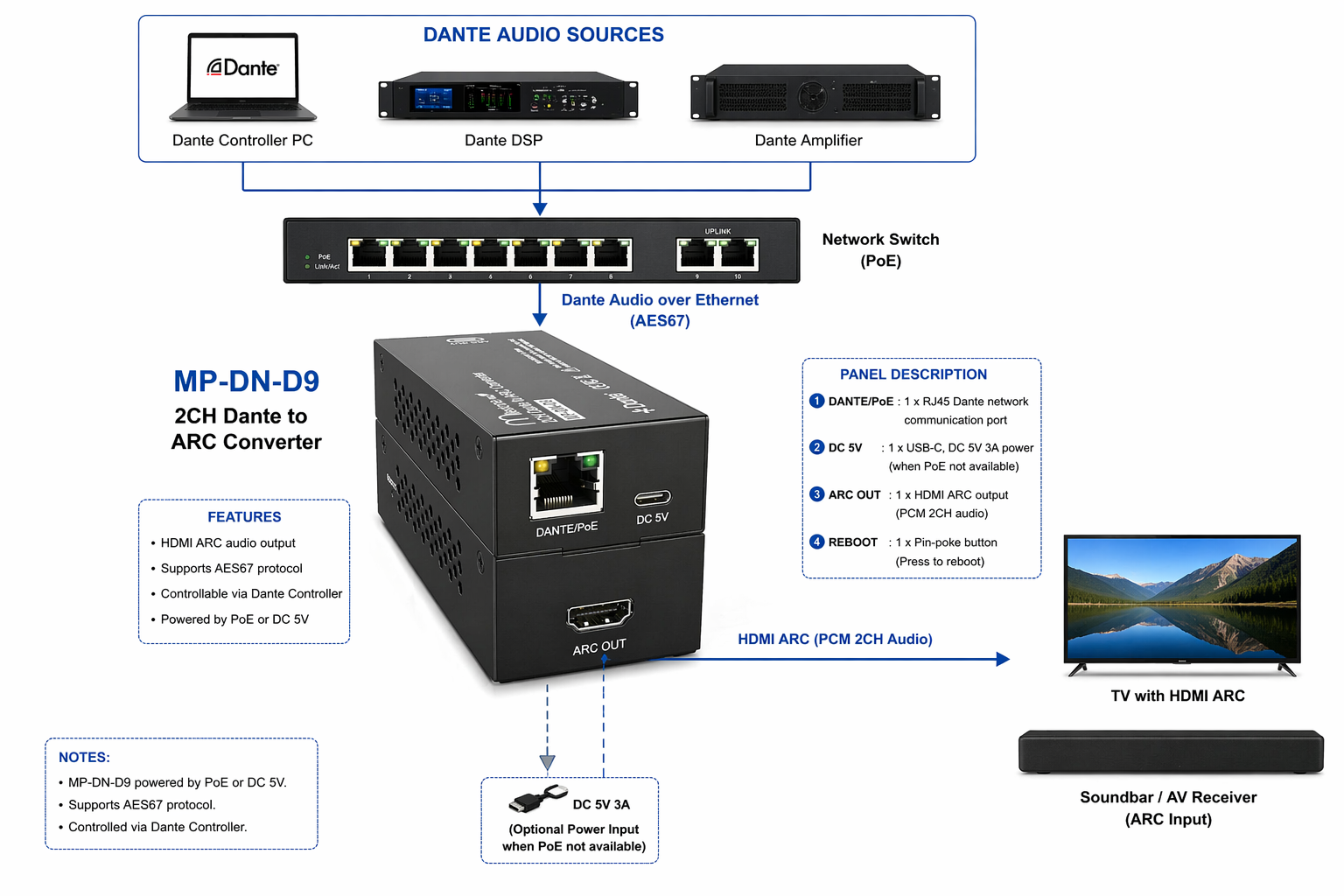

The MP-DN-D9 is a 2CH Dante to ARC converter. It communicates with Dante via the Ethernet port and outputs audio via ARC. Users can
control and distribute audio through the Dante Controller. Its compact and portable design makes it suitable for use in various scenarios

Sample Rate	44.1/48/96kHz
Bit Depth	24-bit
Model Name	MP-DN-D9
Protocol	Support AES67
Power	IEEE 802.3af PoE
Power	DC 5V 3A
Operation Temperature	-5℃ ~ +55℃
Storage Temperature	25℃ ~ +70℃
Power Consumption	1W (Max)
Dimension	114x 48 x 26 mm
