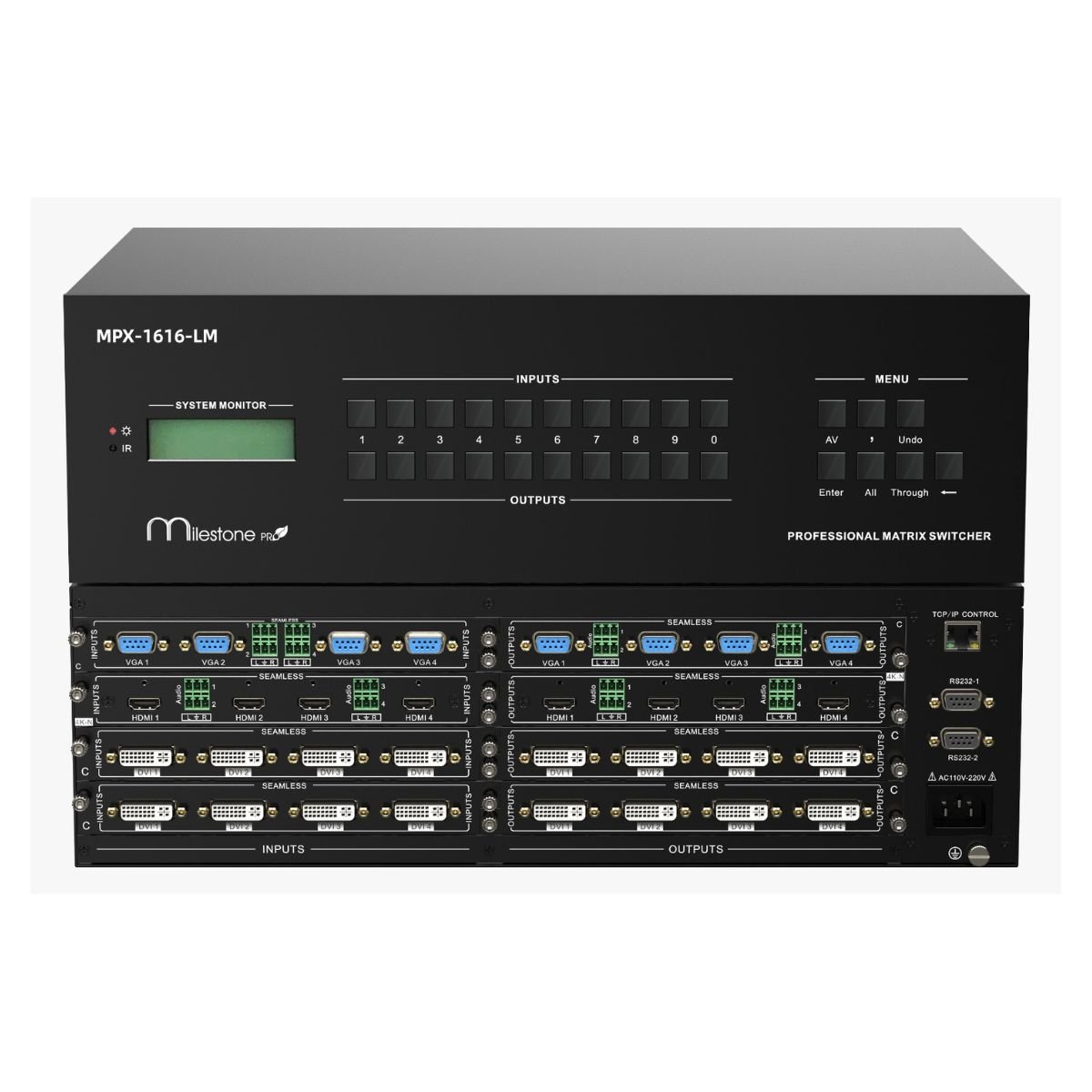

MPX-1616-LM

The hybrid card matrix switcher is a high-performance professional switching device for audio and video signals. It is compatible with input/ output signal cards of different signal types, used for cross-switching of multiple signal inputs and outputs. And provide independent audio/ video signal input and output terminals. The seamless signal card types that can be inserted include: HDMI, HDBaseT, SDI, and VGA. Combining the functions of different signal cards can solve the problem of comprehensive audio and video.

Input	The 8-way hybrid card matrix with 2 card slots. The 16-way hybrid card matrix with 4 card slots. The 32-way hybrid card matrix with 8 card slots.
Output	The 8-way hybrid card matrix with 2 card slots. The 16-way hybrid card matrix with 4 card slots. The 32-way hybrid card matrix with 8 card slots.
RS-232	DB9 to RS-232 TCP/IP RJ45
IR	Remote controller Front Panel Buttons

MPX-1616-LM
