MPTP-T70-WPR

High bandwidth: 10.2Gbps
Wide resolution range (from 480p to 4Kx2K)
Compliant with HDMI 1.4, supports 1080p 3D
HDCP compliance, equipped with HDCP auto-tracking
Bi-directional IR& RS232 control
Powered by a local power pack or power sourcing equipment via a PoC/ PoE solution
Aluminium design for elegant and better cooling

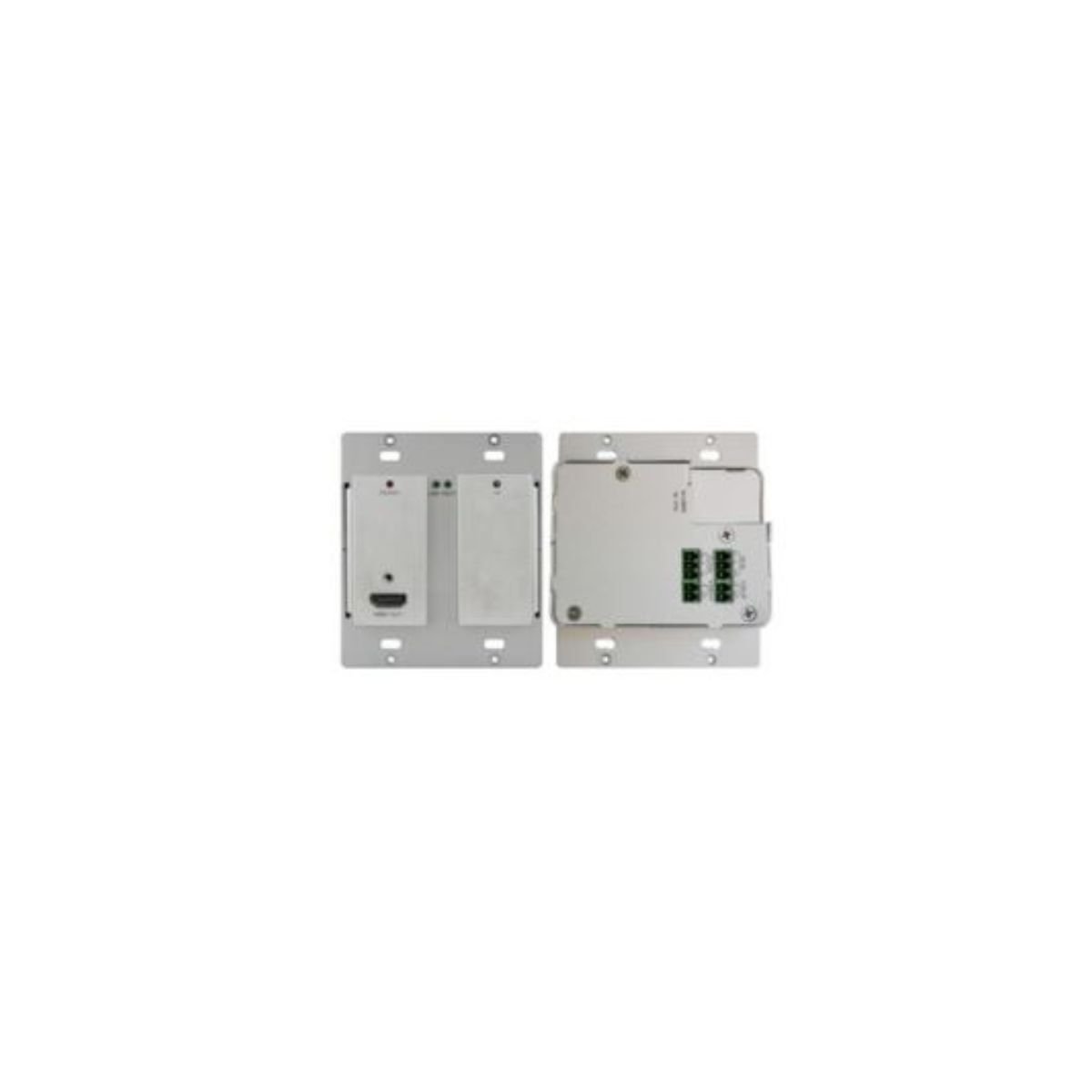

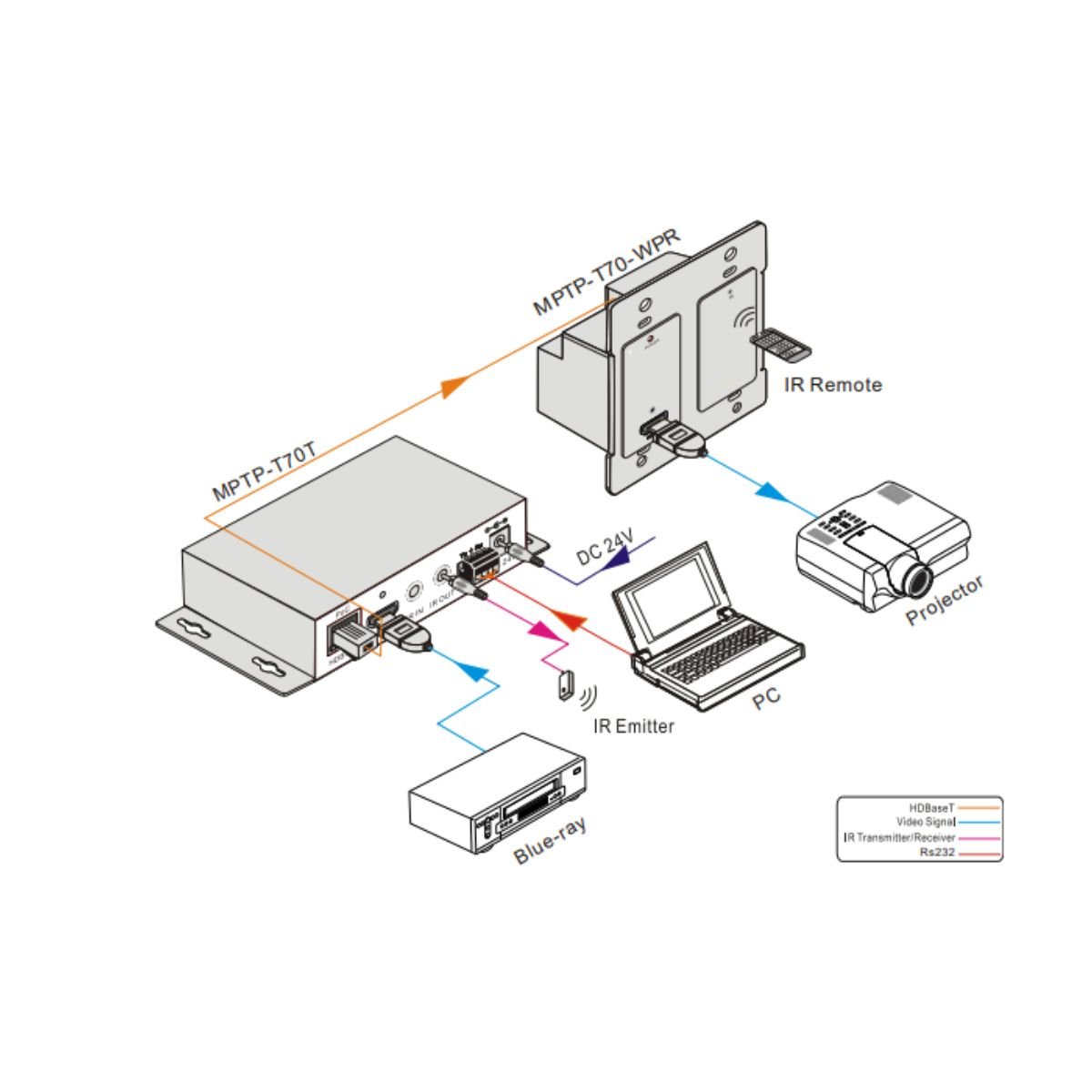

MPTP-T70-WPR is a Decora-style HDBaseT receiver that installs in a double-gang wall
plate to provide a convenient interface for HDMI / DVI output. It has 1 HDMI OUT, 1
HDBT IN with PoC & PoE, 2 IR IN and 1 IR OUT. It supports HDMI 1.4& HDCP for
reliable transmission. HDBT IN is capable of transmitting AV& control signal up to 70m, of
which IR& RS232 control signal can travel bi-directionally.

Input	1 HDBT
Input Connector	1 RJ45
Transmission Distance	1080P≤20M 4Kx2K≤15M
Control Ports	1 RS232 2 IR IN (1 in-built IR sensor on front panel, 1 3.5mm IR IN on rear panel, 1 IR OUT
Resolution	HDMI:4Kx2K, 1080P 3D, 1080P, 1080i, 720P, 576P, 576i, 480P, 480i
Transmission Distance	1080P≤70M (PoC) 4Kx2K≤40M (PoC)
Bandwidth	10.2Gbps
HDMI Standard	Support HDMI1.4 and HDCP
Chassis Dimension	Decora style two-gang
Power Consumption	7w (Max)
Temperature	0 ~ 55℃
