MP-SUH42D-MV

3 × HDMI Inputs + 1 × HDMI Output
4K60Hz (4:4:4) support
USB-C Input with DP 1.2 & up to 65W charging
USB 3.0 Video Streaming

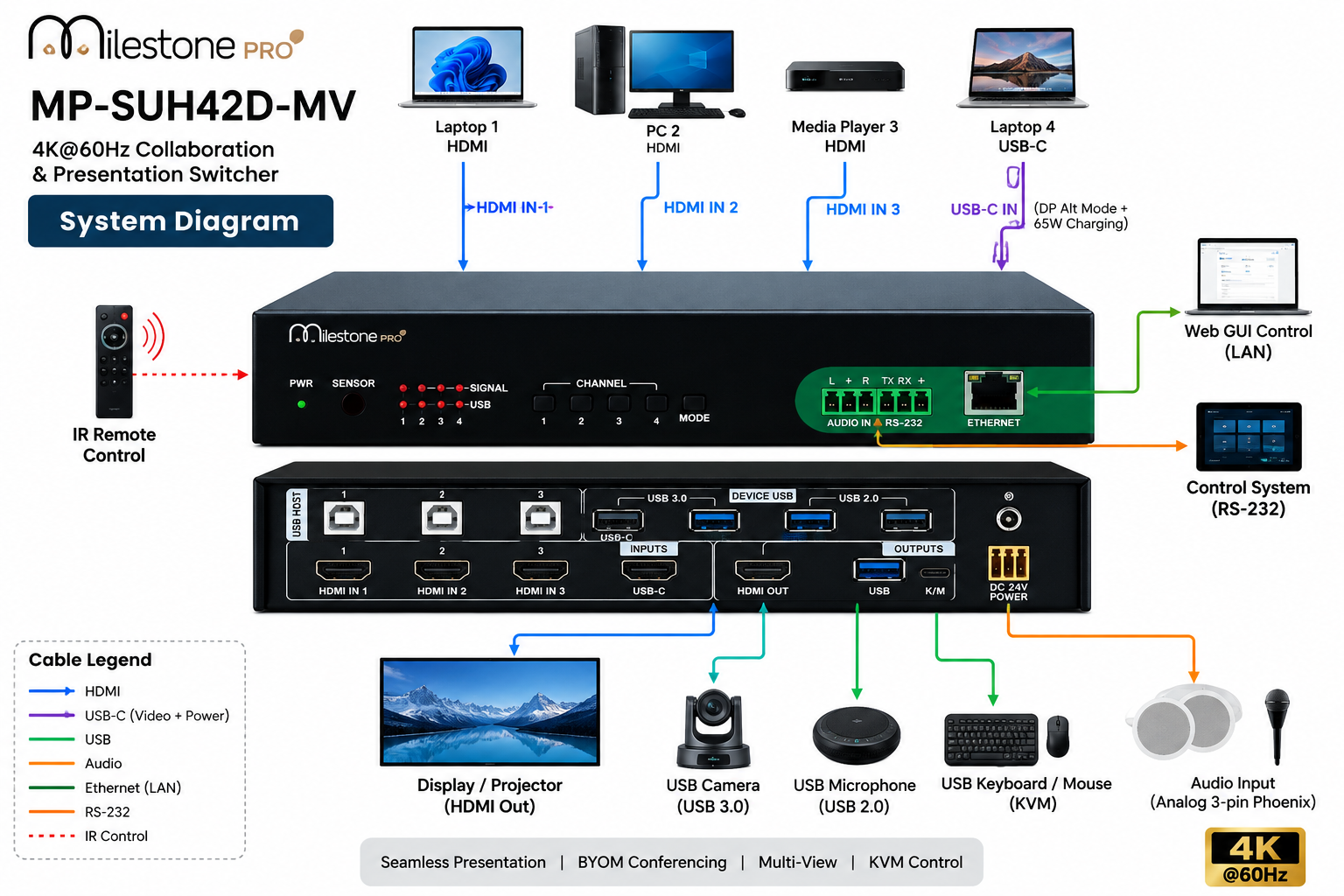

Multi-view & KVM Collaboration
RS-232, IR, Web & Front Panel Control
Analog Audio Input & Audio Mixing
DC 24V Power Supply

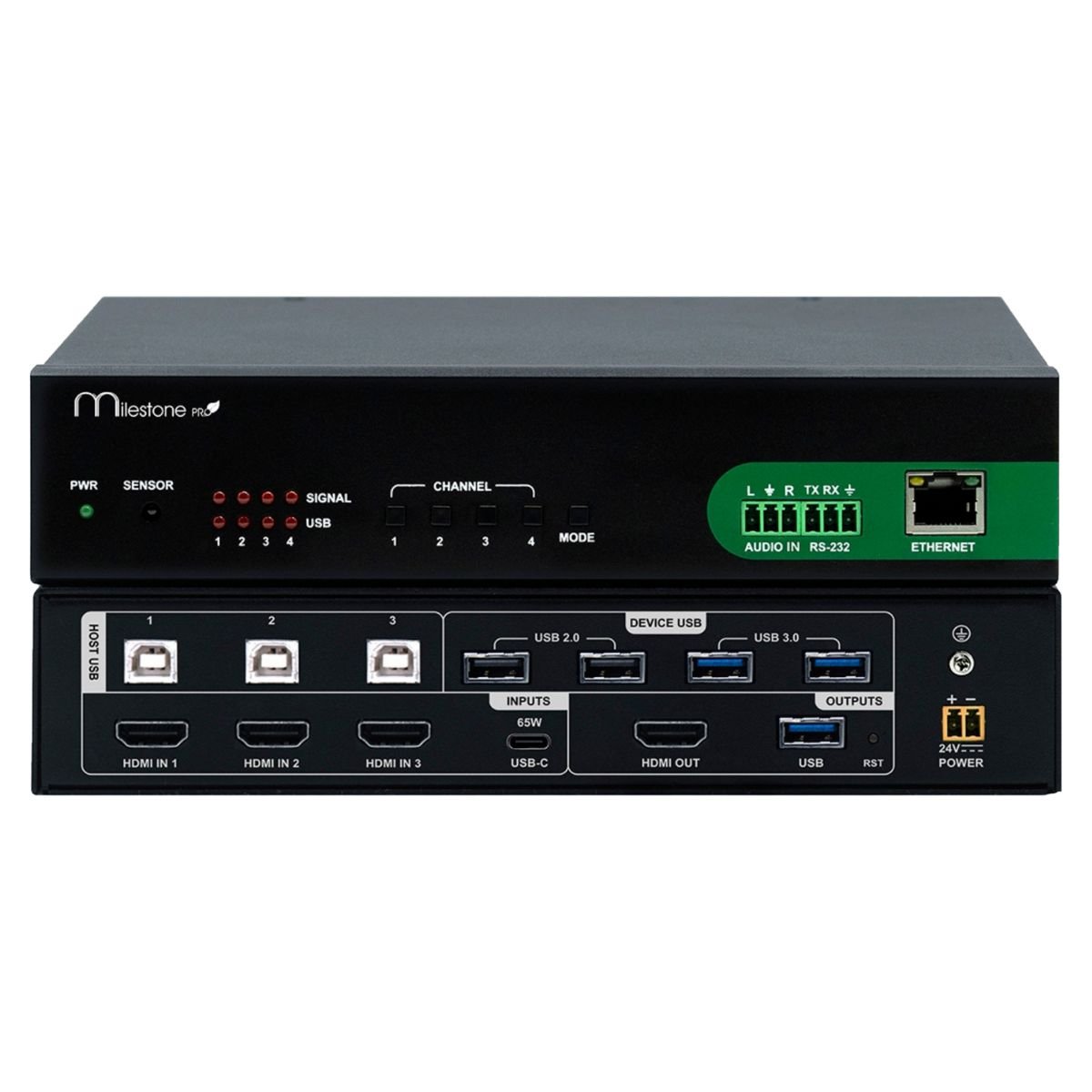

MP-SUH42D-MV – 4K60Hz Collaboration & Presentation Switcher
A powerful collaboration switcher designed for modern meeting spaces, supporting seamless 4K presentation, BYOM conferencing, multi-view display and KVM-based control for efficient collaboration.

MP-SUH42D-MV

Product Type	4K60Hz Collaboration & Presentation Switcher
HDMI Input	3 × HDMI 2.0, HDCP 2.2
HDMI Output	1 × HDMI 2.0, HDCP 2.2
USB-C Input	DP 1.2, PD 3.0, up to 65W charging
USB Host	3 × USB 3.0 Type-B
USB Device	2 × USB 2.0 + 2 × USB 3.0
USB Video Output	USB 3.0 Video Streaming
USB 3.0 Resolution	Up to 4096 × 2160 60Hz (MJPEG)
USB 2.0 Resolution	Up to 1920 × 1080 60Hz (MJPEG)
