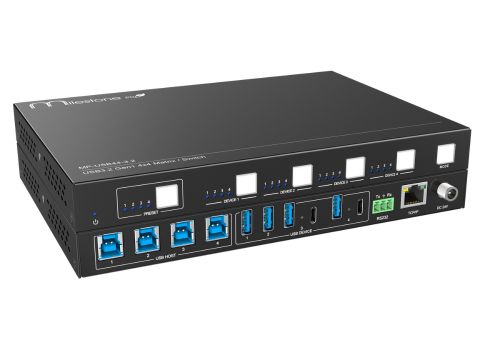

MP-USB44
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions; please contact the local distributor for maintenance assistance. The functions described in this version were updated till Apr 10th，2025. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
SAFETY PRECAUTIONS
- Support USB 3.2 Gen1, 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Support front panel, GUI, and RS232 control
- 5V900mA power supply via USB-A
- Web interface module for control and configuration of the MP-USB44-3.2
- Plug and Play
Powered by Froala Editor
| Input | (4)USB |
| Input Connector | (4)USB-A (2)USB-C |
| USB Standard | USB3.2 Gen1 |
| Output | (4)USB |
| Output Connector | (4)USB-B |
| USB Standard | USB3.2 Gen1 |
| Control port | (1)RS232, (1)TCP/IP |
| Control Connector | (1)3-pin terminal blocks, (1)RJ45, Buttons |
| Bandwidth | 5Gbps |
| Operation Temperature | -10 ~ +55℃ |
