MP-SC-31T
Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to the real product. This manual is only for operation instructions; please contact the local distributor for maintenance assistance. The functions described in this version were updated till Mar 2025. In the constant effort to improve the product, we reserve the right to make functions or parameters without notice or obligation. Please refer to the dealers for the latest details.
Features
- 3x1 18G presentation switcher with HDBaseT output.
- 18Gbps high bandwidth, HDMI 2.0, HDCP2.2.
- HDMI and USB-C video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
- Supports to transmit up to 40m at 4K@60Hz or 70m at 4K@30Hz.
- Controlled by button on the front panel, GUI (via TCP/IP) and RS232.
- Supports audio volume adjust for both TX and RX.
- Supports two-way IR and 24V PoC.
- Provides HDMI loop out.
- Supports upgrading both MCU and HDBaseT at the same time.
Powered by Froala Editor

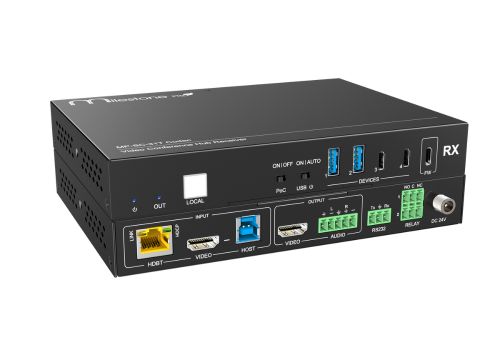

| 1 x MP-SC-31T Codec Tx | 1 x MP-SC-31T Codec Rx |
| 4 x Mounting Ears with 4 Screws | 8 x Rubber Feet |
| 2 x 5-pin Terminal Block | 1 x Power Adapter (DC 24V/6.5A) |
| 2 x 2*3pin Terminal Block | 1 x 3-pin Terminal Block |
| Input | 1 x USB-C, 2 x HDMI, 1x USB-B |
| Input Connector | 1 x USB Type C, 2 x Type-A female HDMI, 1 x USB Type-B |
| Input Resolution | Support up to 4K@60Hz 4:4:4 |
| Output | 1 x HDBaseT, 1 x LOOPOUT |
| Output Connector | 1 x RJ45, 1 x Type-A female HDMI |
| Output Resolution | Up to 4K@60Hz 4:4:4 |
